The applicability and challenges of black carbon sensors in monitoring networks

J. Tapio Elomaa, Krista Luoma, Sami D. Harni, Aki Virkkula, Hilkka Timonen, and Tuukka Petäjä
Abstract

Black carbon (BC) is a particulate pollutant emitted as a by-product of combustion. BC has an emerging role in air quality monitoring with the current recommendations by the World Health Organization to monitor BC to capture its temporal and spatial variability. To observe this variability, especially in urban areas, a large quantity of sensor-type measurements is required. In this study, four different types of small-scale filter-based BC sensors (AE51, MA200, MA350, and Observair) were used to build a sensor network in Kumpula campus, Helsinki, Finland. Our aim was to test the applicability of the sensors to monitor ambient BC concentrations in field conditions and to study the variation of BC at high resolution. The results were compared to a reference level instrument (multi-angle absorption photometer, MAAP) for validation. During intercomparisons, the sensors had a good correlation with the reference and, after a simple orthogonal regression calibration, were deemed suitable for deployment in the sensor network. During deployment, the sensor network proved to be able to capture small-scale temporal and spatial differences in BC concentrations. Changes in temperature (T) and relative humidity (RH) were observed to induce error in the BC measurements. This error was amplified by the dual-spot correction, which was worsening the measurement result under unstable conditions of T and RH. This should be considered when using sensors that apply the dual-spot correction automatically. The environmental compensation used by the Observair sensors reduced the error from the changing T and RH. To reduce the effect of changing T and RH, more robust environmentally controlled boxes should be developed, or correction algorithms, such as environmental compensation, should be applied.

Share
1 Introduction

Black carbon (BC) is a typical aerosol particle component in the atmosphere. BC consists of carbonaceous material that efficiently absorbs light at visible wavelengths and therefore appears black. It is emitted into the atmosphere as a by-product of incomplete combustion, such as traffic and biomass combustion. BC has remarkable effects on both climate and air quality (Bond et al., 2013).

BC affects the climate directly by interacting with solar radiation and indirectly via complex aerosol–cloud interactions (Stocker et al., 2013). Due to its absorbing nature, BC has a warming effect on the climate. The warming effect is enhanced if BC is emitted or transported in polar areas, where it speeds up the melting of snow and ice sheets by deposition (Sand et al., 2013; Kang et al., 2020; Räisänen et al., 2022).

From the air quality viewpoint, BC is an air pollutant with adverse health effects. Since BC particles typically fall into the size range of ultrafine particles (diameter < 100 nm), they can be transported into the deepest part of the human respiratory system, from there to the blood circulation system, and eventually end up even in the brain and other vital organs (Janssen et al., 2011; Segersson et al., 2017). Combustion-related emissions consist of large concentrations of other fine particles and toxic materials that have been shown to have more adverse health effects than particulate matter from other sources (Krzyzanowski et al., 2005). BC, as a by-product of combustion, has been shown to be a better indicator of the adverse health effects of atmospheric aerosol particles than the more commonly monitored mass of particles smaller than 2.5 µm in diameter (PM2.5) (Janssen et al., 2011). In the long run, inhaled fine aerosol particles can cause cardiovascular and respiratory diseases as well as cancer (Ravindra, 2019; Lequy et al., 2021). Lelieveld et al. (2015) estimated that globally, exposure to PM2.5 causes 1.9 million premature deaths per year.

In the recent air quality guidelines, WHO recommends starting systematic measurements of BC in urban areas to reduce the uncertainty related to the temporal and spatial variability of BC concentrations as well as its health, air quality, and climate impacts (WHO, 2021). Despite the recommendations to monitor BC, there are no limit values yet regarding BC concentration due to a lack of epidemiological exposure studies.

Especially in urban areas, the concentration of BC can vary depending on both anthropogenic and natural factors: e.g., changing traffic rate and local biomass combustion and weather conditions, orography, or nearby buildings that affect the dilution by wind or convection (Helin et al., 2018; Caubel et al., 2019; Luoma et al., 2021a). For example, BC concentrations are halved by moving 30 m away from a busy traffic lane (Enroth et al., 2016). Due to these various sources and rather short lifetime (days compared to years with greenhouse gases), BC has a lot of temporal and spatial variation within urban districts and communities (Patrón et al., 2017; Caubel et al., 2019; Luoma et al., 2021a).

To capture and measure the spatial and temporal variability of BC in urban areas, one option is to deploy a high-resolution sensor network (Caubel et al., 2019). This requires a large quantity of affordable but robust sensors that can be deployed outside in ambient conditions. A viable option is to utilize commonly used filter-based methods that are robust and easy to use and have a high time resolution. In the last decade, small-scale versions of the filter-based instruments have been introduced, reducing the cost of the sensors in relation to large monitoring instruments by sacrificing some reliability, sensor lifetime, and accuracy (Kamboures et al., 2013; Caubel et al., 2018; Holder et al., 2018). Previous studies have reported a good correlation between BC sensors and reference-grade instruments but with varying slopes and intercepts depending on location and sensor, implicating the need for on-site calibration (Alas et al., 2020; Kuula et al., 2020; Chakraborty et al., 2023; Wu et al., 2024). In previous studies, a common application for these sensors has been personal BC exposure as a carry-on measurement device (Delgado-Saborit, 2012; Li et al., 2015), mobile measurements (Alas et al., 2019; Pikridas et al., 2019), and sensor networks (Caubel et al., 2019).

The large quantity of sensors inevitably causes technical challenges, for example with maintenance, data acquisition, survivability of the sensors under the changing ambient conditions such as diurnal temperature changes and rain, sensor to sensor variability, and internal sensor drift (Petäjä et al., 2021; Zaidan et al., 2023). Before a wide implementation of sensor networks, pilot deployments are needed to identify the challenges of individual sensor operations and sensor networks. Operating a variety of sensors side by side in the same network allows assessment of performance characteristics of different models of BC sensors and to identify the critical qualities of a good small-scale BC sensor.

The aim of this study is to explore the suitability of four distinct types of filter-based small-scale BC sensors (AE51, MA200, MA350, Observair) for mapping the spatio-temporal variation of urban BC concentrations. To ensure the measurement quality, we compared the sensors with a multi-angle absorption photometer (MAAP) (Petzold and Schönlinner, 2004) in two intercomparison periods at Station for Measuring Ecosystem–Atmosphere Relations III (SMEAR III; Järvi et al., 2009) in Kumpula campus, Helsinki, southern Finland, from the end of May to the start of October 2022. In between the two intercomparisons, the sensors were deployed as a sensor network in the surrounding Kumpula campus area. We characterized the applicability of the different sensor types within the sensor network and the suitability and challenges regarding their utilization in ambient measurements. Furthermore, we provide preliminary results for the general features of BC concentrations within the Kumpula campus area and its spatio-temporal variation.

2 Methods

2.1 Measuring principle to obtain BC mass concentration with small-scale sensors

Filter-based optical methods are widely used to measure BC concentration due to their ease of operation and relatively low cost (Hansen et al., 1984). With this technique, sample air is drawn through a filter material, where aerosol particles are collected onto the filter. The attenuation of light through the filter area increases over time due to increased absorption and scattering from the collected particles. The attenuation is described by Eq. (1), where I0 is the light intensity through a clean filter, and I is the light intensity through a loaded filter:

(1) ATN = - ln I / I 0 .

The attenuation coefficient bATN(λ) [m−1] is calculated from the measured light intensity and the operational parameters of the instrument as described in Eq. (2), where A [m2] is the area of the sample spot, Q [m3 s−1] is the volumetric flow through the sample spot, Δt [s] is the collection time, and λ is the wavelength of the light source.

(2) b ATN λ = A Q Δ ATN λ Δ t

To determine the BC concentration from the attenuation coefficient, a series of assumptions are necessary, and some corrections need to be applied. The attenuation consists of (1) absorption from the aerosol particles; (2) enhanced attenuation from multiple scattering by the filter fibers (multiple scattering); (3) enhanced attenuation from scattering of the aerosol particles (aerosol scattering); and (4) the saturation of the filter, which causes the attenuation to change non-linearly over time (loading effect) (Collaud Coen et al., 2010). In a general form the BC calculation can be presented as

(3) eBC = 1 MAC λ σ ap λ = 1 MAC λ f ATN b ATN λ - s λ σ sp λ C ref ,

where σap(λ) [m−1] is the absorption coefficient (1), Cref is the multiple scattering correction factor (2), s(λ) is a fraction of the scattering coefficient σsp(λ) [m−1] (3), f(ATN) is a loading correction function (4), and MAC(λ) [m2 g−1] is the mass absorption cross section (MAC) (Virkkula et al., 2015). The results are given as equivalent black carbon (eBC), denoting the conversion of the absorption coefficient to mass concentration with the use of a specific MAC value (Petzold et al., 2013).

It is assumed that with an 880 nm light source the absorption is only from BC particles minimizing the effect of absorbing organic carbon species (i.e., brown carbon, BrC), which only absorb light on shorter wavelengths. Hence in this study, the eBC concentration is determined at λ= 880 nm (apart from MAAP that operates at 637 nm). The multiple scattering factor Cref depends on the filter material and instrument used. Most commonly, a constant value is used appropriate for the instrument and filter material. It is to be noted that the Cref value can have a large variability depending on seasons, location, and methodology of determination (Collaud Coen et al., 2010; Backman et al., 2017; Di Biagio et al., 2017; Bernardoni et al., 2021; Luoma et al., 2021b). The aerosol scattering correction requires measurement of the σsp, which in many cases is not possible due to the lack of instrumentation. Due to this the aerosol scattering correction is often disregarded as in this study. For the loading correction, a plethora of options are available (Bond et al., 1999; Weingartner et al., 2003; Arnott et al., 2005; Schmid et al., 2006; Kirchstetter and Novakov, 2007; Virkkula et al., 2007; Collaud Coen et al., 2010; Hyvärinen et al., 2013; Drinovec et al., 2015; Chakraborty et al., 2023). In this study, the dual-spot correction (Drinovec et al., 2015; Chakraborty et al., 2023) was tested for the sensors. The correction was selected as it is the most recent one; it is widely used with Aethalometer® model AE33, and capability of this correction is built in to the design of MA200 and MA350 sensors that were utilized in this campaign (see Sect. 2.2). For the MAC value, a constant value is commonly used with the assumption that the measured BC is freshly emitted (Bond and Bergstrom, 2006; Bond et al., 2013; Liu et al., 2020).

2.2 Dual-spot correction algorithms

The dual-spot correction is a scheme to correct for the loading effect by relating two measurement spots with differing flows. The correction is presented in Eq. (4), where eBCNC is the uncorrected measurement and k is the compensation parameter.

(4) eBC = eBC NC 1 - k ATN

The k parameter can be determined numerically from the overall loading of the two filter spots as presented in Eq. (5), where subindices L and H refer to the low and high flow spots, respectively (Drinovec et al., 2015). FVRF is the face velocity ratio factor.

(5) Q L Q H FVRF = ln 1 - k ATN L ln 1 - k ATN H

As the k is very sensitive to errors in sample flow measurements, the additional empirical factor FVRF is implemented to reduce the sample flow measurement uncertainty. The FVRF is calculated by plotting ATNL/ATNH to ATNH and taking the intercept of a linear fit. The linear fit is done when ATNH is between ATNf1 and ATNf2, with example values being 10 and 30, respectively. The lower limit (ATNf1) is set to minimize the effect of particle transients in the fresh filter spot, and the upper limit (ATNf2) is set low enough so that the data are not yet affected by the loading effect. This should ensure that at the low loading the ATN and flow ratios of the two spots are proportional to each other, and therefore the sample flow measurement error can be minimized with the ATN measurements.

Due to the determination of the FVRF and k being unstable at low loadings and more accurate at high loadings, k is additionally weighted according to Eq. (6), where kw is the weighted k, ATNTA is the tape advance trigger (default ATNTA= 120 at 370 nm), and kold is the k calculated from a previous filter spot, i.e., before the tape advance:

(6) k w = ATN TA - ATN H k old + ATN H - ATN f 2 k ATN TA - ATN f 2 .

All in all, the weighing results in the static kold value being used most of the time, and the real-time-determined k according to Eq. (5) rises in importance at higher loadings and closer to the times when the tape advance is triggered. The final weighted kw at full loading is equal to the real-time-determined k. The correction is applied to the high flow spot with the weighted kw and Eq. (4) in real time during the measurements.

The MA200 and MA350 sensors utilize a variation of the dual-spot correction (Chakraborty et al., 2023; Mendoza et al., 2024). In this version k is calculated as seen in Eq. (7) and no weighting is used. The data are corrected with the kMA as seen in Eq. (4).

(7) k MA = eBC L - eBC H eBC L × ATN H - eBC H × ATN L

In this study both versions of the correction were tested.

2.3 Deployment of small BC sensors at the Kumpula campus

We used four types of small-scale black carbon sensors and one reference instrument. The sensors were AE51 (two units), MA200 (one unit) and MA350 (one unit) by Aethlabs and Observair (OBS; four units) by Distributed Sensing Technologies (DST). As the reference instrument, we used a multi-angle absorption photometer (MAAP) by Thermo Fischer Scientific (Petzold and Schönlinner, 2004).

The sensor specifications are given in Table 1. All small-scale sensors can be operated with flow rates between 50 and 200 mL min−1. AE51 and Observair measure with one wavelength at 880 nm, while the MA sensors measure with five wavelengths (880, 625, 528, 470, and 375 nm). All sensors calculate the eBC concentration at 880 nm according to the assumption to minimize the effect of BrC. The other wavelengths of the MA sensors can be used to differentiate between BrC and BC and the possible sources of these particles. In this study only the 880 nm wavelength was utilized to conform to the other sensors. The MA sensors have an inbuilt capability for dual-spot correction, and therefore they have two separate measurement spots and one reference spot. The AE51 and Observair have one measurement spot and one reference spot. The AE51 and Observair sensors were run in pairs for the prospect of the dual-spot correction (see Sect. 3.2.). The filter materials were Teflon-coated quartz fibers (T60) for the AE51 and polytetrafluoroethylene (L15 or L85 filter cartridge) for the MA sensors, and the filter material was described as fibrous filter material (Distributed Sensing Technologies, 2023) for Observair. AE51 and Observair had single-use filters that needed to be replaced regularly, in our case every 4–5 d. The MA sensors have filter cassettes that automatically change the filter spot after a high loading limit is reached. In our case the filter was set to change when ATN was higher than 100 at any wavelength (most likely the lowest wavelength of 375 nm), but the setting can be changed between 1 and 100. The MA200 filter cassette has 15 spots, and MA350 has 85 spots. The filter sample spot is 7.1 mm2 for all sensor types, and all sensors use the same MAC = 7.8 m2 g−1 (at 880 nm). The Cref value for AE51 is 1.6 and for the other sensors 1.3. All sensors have additional measurements of temperature (T) and relative humidity (RH), and the Observair sensors utilize environmental compensation technology to compensate for sharp changes in T or RH.

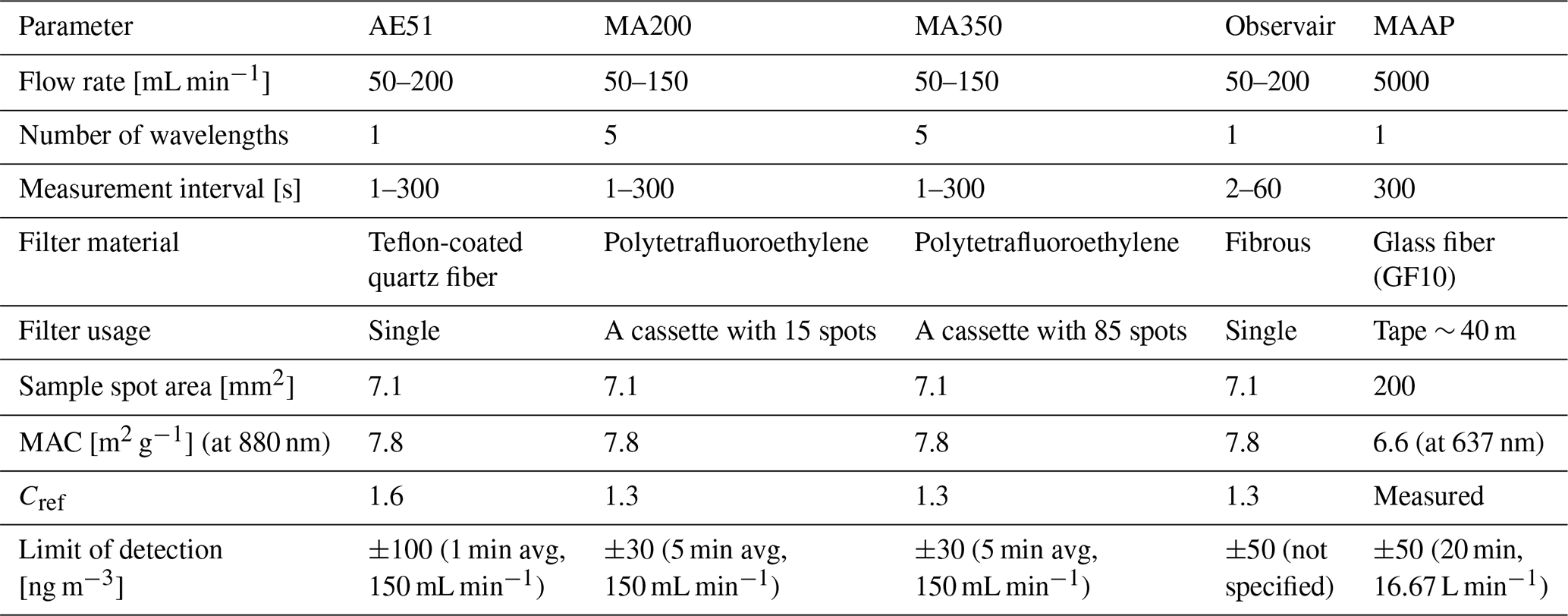

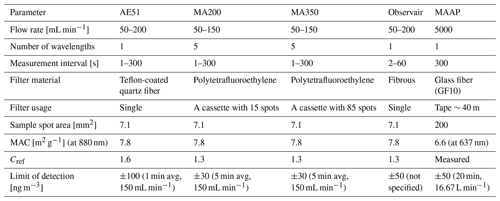

Table 1The technical details of the black carbon sensors and the multi-angle absorption photometer (MAAP) used in this study.

Download Print Version | Download XLSX

The reference instrument MAAP is also a filter-based absorption photometer, but it differs from the measurement principle presented in Sect. 2.1 by additionally measuring backscattering from the filter at two angles to improve the accuracy of the σap and eBC. Additionally, the MAAP derives the σap by applying a two-stream-approximation radiative transfer scheme (Petzold and Schönlinner, 2004). Therefore, it is a somewhat more independent measurement method and is a good reference instrument for the eBC sensors. The MAAP has also been used as a reference instrument in previous studies comparing filter-based instruments (e.g. Alas et al., 2019; Luoma et al., 2021b). The reported uncertainty and unit-to-unit variability of the MAAP (at 16.67 L min−1 flow) are 12 % and 3 % (Petzold and Schönlinner, 2004; Müller et al., 2011). Here, the flow rate was set to 5 L min−1. The instrument measures with only one wavelength at 637 nm (Müller et al., 2011) and applies MAC = 6.6 m2 g−1 (at 637 nm). The filter tape is made with glass fiber, and the tape advance is automatic. In our case, the filter tape needs to be changed on average every 6 months. The measurement spot is considerably larger, 2 cm2 in comparison to that for the small-scale sensors, which was 7.1 mm2.

2.4 Description of the sampling site

The field campaign was conducted at the Kumpula campus located approximately 4 km northeast from the center of Helsinki, Finland. Helsinki is the capital of Finland located in the south at the coast of the Gulf of Finland. The metropolitan area consists of four cities with a combined population of 1.2 million people (Statistics Finland, 2023). The main sources of BC in the region are from road traffic, wood burning, maritime traffic, and transboundary air pollution (Helin et al., 2018; Teinilä et al., 2022). In 2022, the air quality in the region was good or satisfactory 90 % of the time (Helin et al., 2018; Korhonen et al., 2022; Teinilä et al., 2022).

The Kumpula campus was selected as the study area due to easy access for deployment, maintenance, and upkeep. The surrounding area consists of parks, detached housing zones, and a relatively high-capacity road (Järvi et al., 2009). In addition, there was an active construction site in the area during the measurements (Fig. 1). Two intercomparison periods were measured during 26 May–6 June 2022 (11 d) and 16 September–3 October 2022 (17 d) at the Station for Measuring Ecosystem–Atmosphere Relationships III (SMEAR III; 60°12 N, 24°58 E; 26 m above sea level (a.s.l.)) (Järvi et al., 2009). In between the intercomparisons during 4 July–16 September 2022 (74 d), the sensors were deployed to the locations seen in Fig. 1.

https://ar.copernicus.org/articles/3/293/2025/ar-3-293-2025-f01

Figure 1Map of the deployment locations in the Kumpula campus and the surrounding area. Also, the construction site and the bus stop close to the Physicum roof measurement are marked on the map. Shared under Creative Commons Attribution-ShareAlike (CC-BY-SA).

Kumpula campus is located on a small hill 26 m a.s.l., and the area with the surroundings is presented in Fig. 1. Southwest from the Kumpula campus is the Kumpula botanical garden and park area with trees and vegetation. In the center of the campus lies the university buildings, Finnish Meteorological Institute (FMI), a few four-story apartment blocks, and a construction site. Further north there is a low-density residential area of mainly wooden houses with more park areas. On the eastern side, there is a road to the city center, Kustaa Vaasan tie, which is used by approximately 38 000–42 000 vehicles per day, with around 10 % being heavy vehicles (Helsinki city road statistics, 2024). Beyond the road lies Toukola residential area, with much larger apartment blocks in comparison to the northern side and a small shopping center. The campus area has a bus line going through it, with the bus stops marked as small blue squares in Fig. 1. Locally, BC is emitted by traffic and wood combustion on the detached housing areas and communal garden.

During the intercomparisons at SMEAR III, the reference instrument MAAP was used with a pre-impactor removing particles larger than 1 µm in diameter from the sample flow. The inlet was positioned about 7 m height from the ground. The small-scale sensors were all measuring on the same sample line (different with MAAP) that did not have any inlet pre-impactor. The separate measurement line was set up through the SMEAR III station wall at a height of 3 m from the ground.

The deployment locations are described in Table 2. In some locations, two sensors were deployed for redundancy and the possibility of applying the dual-spot correction manually. For the dual-spot correction, the pairings were run with differing flow rates. The flow rates used during the different phases of the campaign are outlined in Table 3. The closest sources to the locations were a bus stop near the Physicum roof (Proof) and Physicum ground (Pground) locations on a small road. The FMI parking lot is in the middle of the FMI roof (Froof), FMI ground (Fground), and the SMEAR IIIground locations. The last location, Kumpula botanical garden (BGground), has minimal traffic. The sensors were flow-calibrated during the measurement campaign, and the timing and results are outlined in the Supplement.

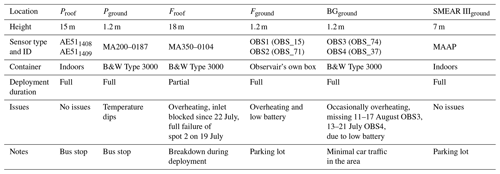

Table 2Information of eBC sensor deployment locations (height, type, container), deployment duration (full – 4 July–16 September 2022, 74 d; partial – 4–19 July 2022, 15 d), and indicated issues related to their operation during the deployment.

Download Print Version | Download XLSX

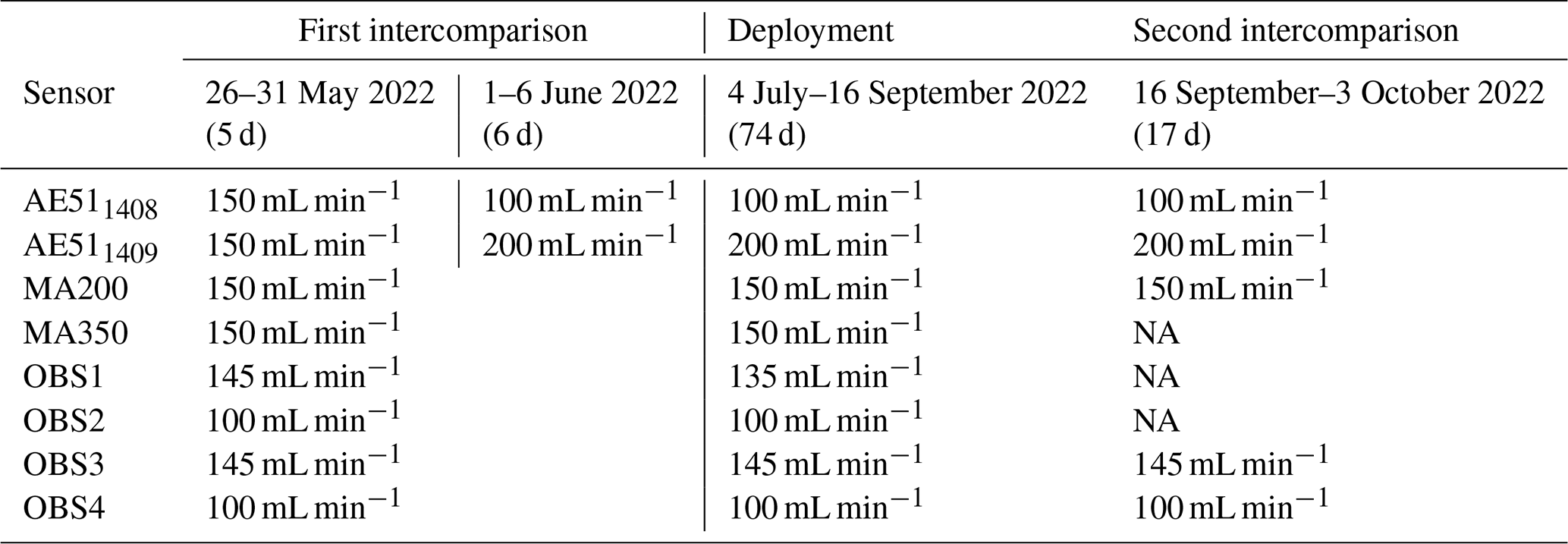

Table 3Flow rates used during the measurements. Not available (NA): sensor data sets that were not available due to instrument failures.

Download Print Version | Download XLSX

2.5 Data analysis

During data processing, data were removed near filter changes. The filter changes were manually identified, and data spanning 2 h were removed starting from the nearest hour before the filter change. This was done for all small-scale sensors.

During the deployment, starting from 19 July 2022 MA350 at Froof had flows significantly lower than the set value. This was most likely due to inlet blockage and the start of a pump failure. Data were removed from this point forward as they were deemed erroneous. The sensor suffered a total pump failure after it was moved to SMEAR III for the second intercomparison (see Sect. 3.2.4).

OBS3&4 located at BGground had shutdowns due to low battery during the deployment. After the sensor restart the data had erroneous starting spikes. Data spanning 2 h were removed, starting from the nearest hour before the restarts. Due to the shutdowns, a missing section of OBS3 data is patched with OBS4 data during the deployment. This was done so that the BGground location has a continuous time series. The sensor-to-sensor variability was deemed low enough as a justification for this process.

In total between 1.5 % and 2.9 % of the available data were removed for all sensors except MA350 for which 69.1 % of the data were removed, which was most of the deployment period. Note that OBS1, OBS2, and MA350 were not tested in intercomparison 2 due to breakage.

For calibration an F factor was calculated, as seen in Eq. (8) using data from the first intercomparison. The corresponding sensor data were then multiplied by the reciprocal of this value.

(8) F = eBC sensor , mean eBC MAAP , mean

Python3 was used for most of the data analysis with numpy, scipy, matplotlib, pandas, seaborn, and mpl-scatter-density packages (Harris et al., 2020; Hunter, 2007; pandas development team, 2020; Virtanen et al.,  2020; Waskom, 2021, https://github.com/astrofrog/mpl-scatter-density, last access: 21 August 2024). For the wind plots, R with the openair library was used (Carslaw and Ropkins, 2012).

3 Results and discussion

3.1 Intercomparison of BC sensors

Before and after the deployment, intercomparison measurements were conducted at SMEAR III to study the differences between the sensor types and the individual units. The sensors were measuring ambient eBC concentrations parallel with the reference instrument MAAP (see Sect. 2.4). The intercomparison measurements were conducted during 26 May–6 June 2022 (11 d) and 16 September–3 October 2022 (17 d). All the sensors were tested in the first intercomparison (AE51 x2, MA200, MA350, OBS x4). During the deployment, MA350, OBS1, and OBS2 were damaged and therefore were not tested in the second intercomparison. Time series of the intercomparisons can be seen in Fig. 2 in 5 min averages. Correlation of all the sensors in relation to the reference instrument MAAP is seen in Fig. 3 with an orthogonal regression. The values of the orthogonal regression line fit are listed in Table 4. For MA sensors, spot 1 data are used instead of dual-spot-corrected data (see Sect. 3.1.2).

https://ar.copernicus.org/articles/3/293/2025/ar-3-293-2025-f02

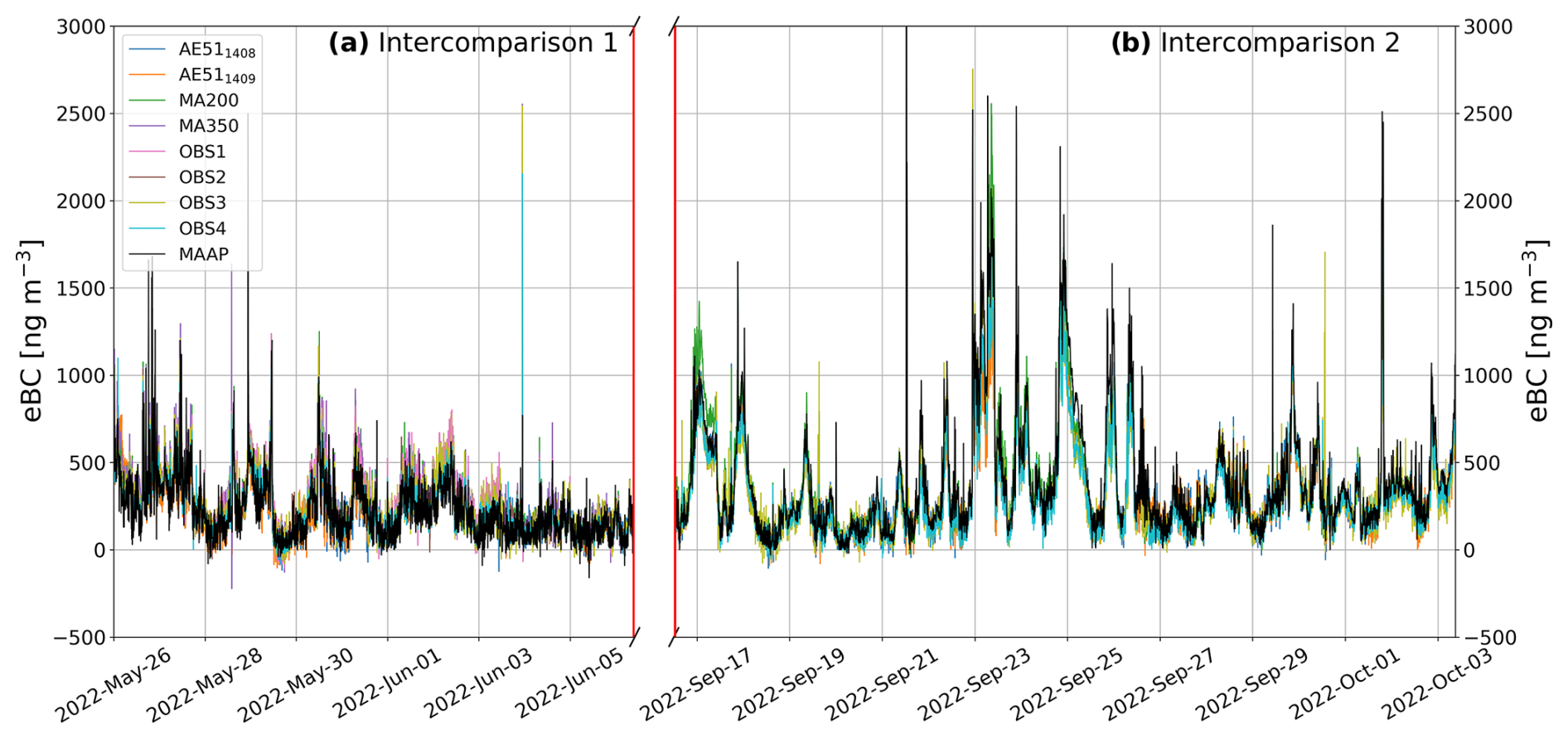

Figure 2Time series of both intercomparison periods: (a) 26 May–6 June 2022 and (b) 16 September–3 October 2022. In the figure there is a split x axis, where the period in between panels (a) and (b) marked with the vertical red lines is approximately 3.5 months. This period was the deployment phase between the intercomparisons. Data points are 5 min averages.

Download

https://ar.copernicus.org/articles/3/293/2025/ar-3-293-2025-f03

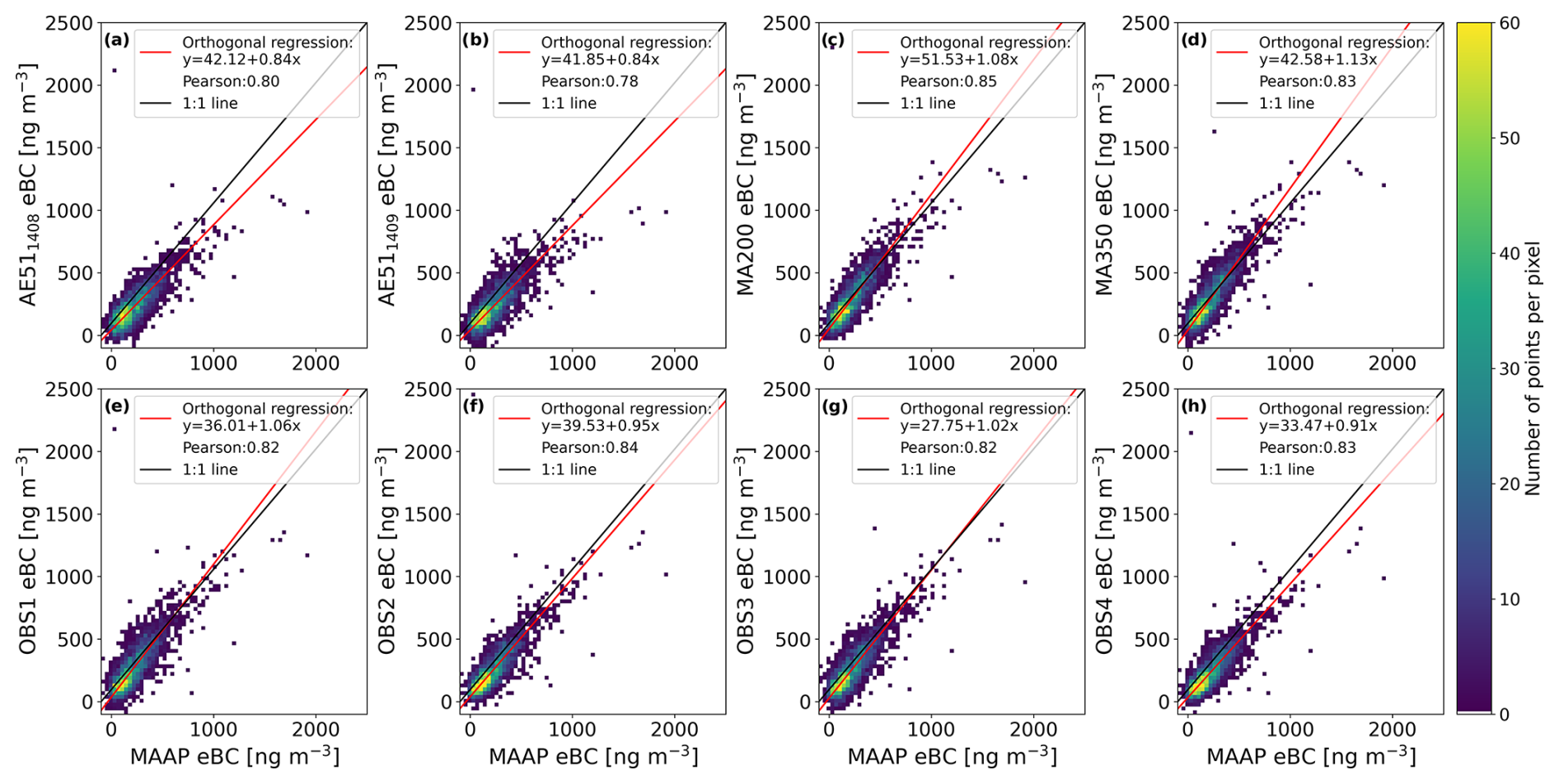

Figure 3Scatter density plot of the correlation between the eBC sensors and the reference instrument MAAP. Data are from first intercomparisons during 26 May–6 June 2022 as 5 min averages.

Download

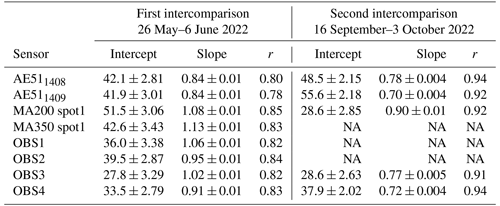

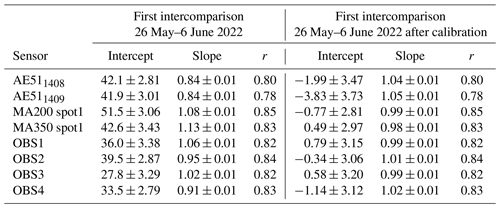

Table 4Results of the intercomparison between the sensors and MAAP (5 min averages). Intercept and slope describe an orthogonal regression line fit (see Fig. 3 for the first intercomparison), and r is Pearson correlation coefficient. Not available (NA): sensor data sets that were not available due to instrument failures.

Download Print Version | Download XLSX

With 5 min averaging all sensors showed a good Pearson correlation (r) between 0.78 and 0.85 during the first intercomparison period. Results of AE51 sensors were very comparable, with both having an intercept of 42 and a slope of 0.84. During this time AE511408 and AE511409 were run with a flow rate of 150 mL min−1 between 26 and 31 May 2022 (5 d) and 100 and 200 mL min−1 between 1 and 6 June 2022 (6 d), respectively (Table 3). During the second intercomparison, there was a larger difference, where the AE511409 had a weaker intercept, slope, and r of 55.6, 0.70, and 0.92 in comparison to the respective values for AE511408 of 48.5, 0.78, and 0.94. Both sensors showed improved r but weaker slope and intercept. Alas et al. (2020) have reported similar results in different types of environments with AE51 compared to MAAP with reduced major axis (RMA) regression. In Manila during summer of 2015 AE51 had r of 0.845 with a slope of 0.871 ± 0.013 and in Rome during winter of 2017 better r of 0.983 and slope of 1.015 ± 0.003. In Loški Potok, with AE33 as the reference, the reported intercomparison values for rural background were r= 0.962 with slope = 0.876 ± 0.005 and for rural village r= 0.978 with slope = 0.826 ± 0.002. Varying slopes are most likely caused by different aerosol types that depend on the location and season.

The MA-series sensors showed similar results where the sensors were comparable to each other, with MA200 having intercept, slope, and r of 51.5, 1.08, and 0.85 during the first intercomparison. The respective values for MA350 were 42.5, 1.13, and 0.83. MA350 did not survive for the second intercomparison. MA200 showed better performance during the second intercomparison, with r= 0.92 and a lower intercept of 28.6. The slope reduced to 0.90. The correlations of the MA-series sensors were comparable to the AE51 sensors, but on average the MA-series sensors measured slightly higher concentrations of eBC. Kuula et al. (2020) reported an intercept, slope, and r of 44, 0.85, and 0.97 of MA350 when compared to AE33. Chakraborty et al. (2023) reported r 0.90 and slopes ranging from 0.736–1.01 for three MA300 units compared to AE33. As the AE33 measures slightly higher concentrations than MAAP (Pikridas et al., 2019; Wu et al., 2024), the intercomparison results seem to be in line with previous studies.

From the Observair sensors, OBS1 was an older sensor that had been utilized in previous campaigns, while OBS 2, 3, and 4 were new. The sensors showed very good comparability with r in the range of 0.82–0.84 during the first intercomparison. The higher flow sensors (OBS1&3) measured slightly higher concentrations than the lower flow sensors (OBS2&4), with slopes being [1.06,1.02] in comparison to [0.95,0.91]. During the second intercomparison the same pattern was observed, where OBS3 measured slightly higher concentrations compared to OBS4 with a slope of 0.77 compared to 0.72. The reduction of slopes was more drastic during second intercomparison with OBS sensors than AE51s or MA200. The r improved to 0.88–0.91. Previous studies have reported similar r and slightly lower slopes with AE33 as reference. r= 0.904 with slope = 0.57 (Wu et al., 2024) and r= 0.89 with slope = 0.87 (Caubel et al., 2018). Wu et al. (2024) noted that the low slope could be partially explained due to high loading of the filters. In this study filters were changed regularly, and the average concentrations were much lower than in Wu et al. (2024) (mean 230 and 1465 ng m−3) .

Surprisingly, all sensors that were available performed better during the second intercomparison, which is likely due to a higher eBC level during the second intercomparison. The first intercomparison has lower concentrations on average compared to the second intercomparison. This is due to the difference in meteorological conditions and possible differences in traffic density during these periods. Overall, the correlations between the sensor types were comparable, but there were slight differences in the base eBC level between the sensor types.

3.1.1 Applicability of the dual-spot corrections

Dual-spot corrections, that compensate for the loading effect, were tested during the intercomparison periods. The performance of the corrections can be seen in Fig. 4, where the sensor data and dual-spot-corrected data with both methods are compared to the reference instrument MAAP. For MA200 the kw version of the correction increased the difference to the reference from 21 to 132 ng m−3 and with the kMA version from 21 to 48 ng m−3. Most notably the variation of the differences increased in both cases, reducing the precision (seen as larger range of whiskers in Fig. 4) of the measurement. For MA350 kw increased the difference from 67 to 145 ng m−3 and kMA decreased the difference from 67 to 22 ng m−3. The precision was reduced but not as much as for MA200. For kMA the inverse in the compensation seems to arise from the relative differences of spot 1 and spot 2 and the calculation mechanism. The k parameter was observed to be highly variable and occasionally beyond reasonable values with both methods. The AE51 and Observair sensors were paired, and the corrections were applied manually by post-processing. For the AE51 the difference improved from 22 to 5 ng m−3 with the kw method and to 8 ng m−3 with the kMA method. The precision remained relatively constant with the kw method and decreased slightly with the kMA method. The correction worked by increasing concentrations at high ATN and increasing the accuracy of the measurement. For the Observair pairings the corrections increased the difference to the reference for OBS1&2 and for OBS3&4. The kw correction increased concentrations and the kMA decreased concentrations. For both pairings the corrections reduced the precision of the measurement.

https://ar.copernicus.org/articles/3/293/2025/ar-3-293-2025-f04

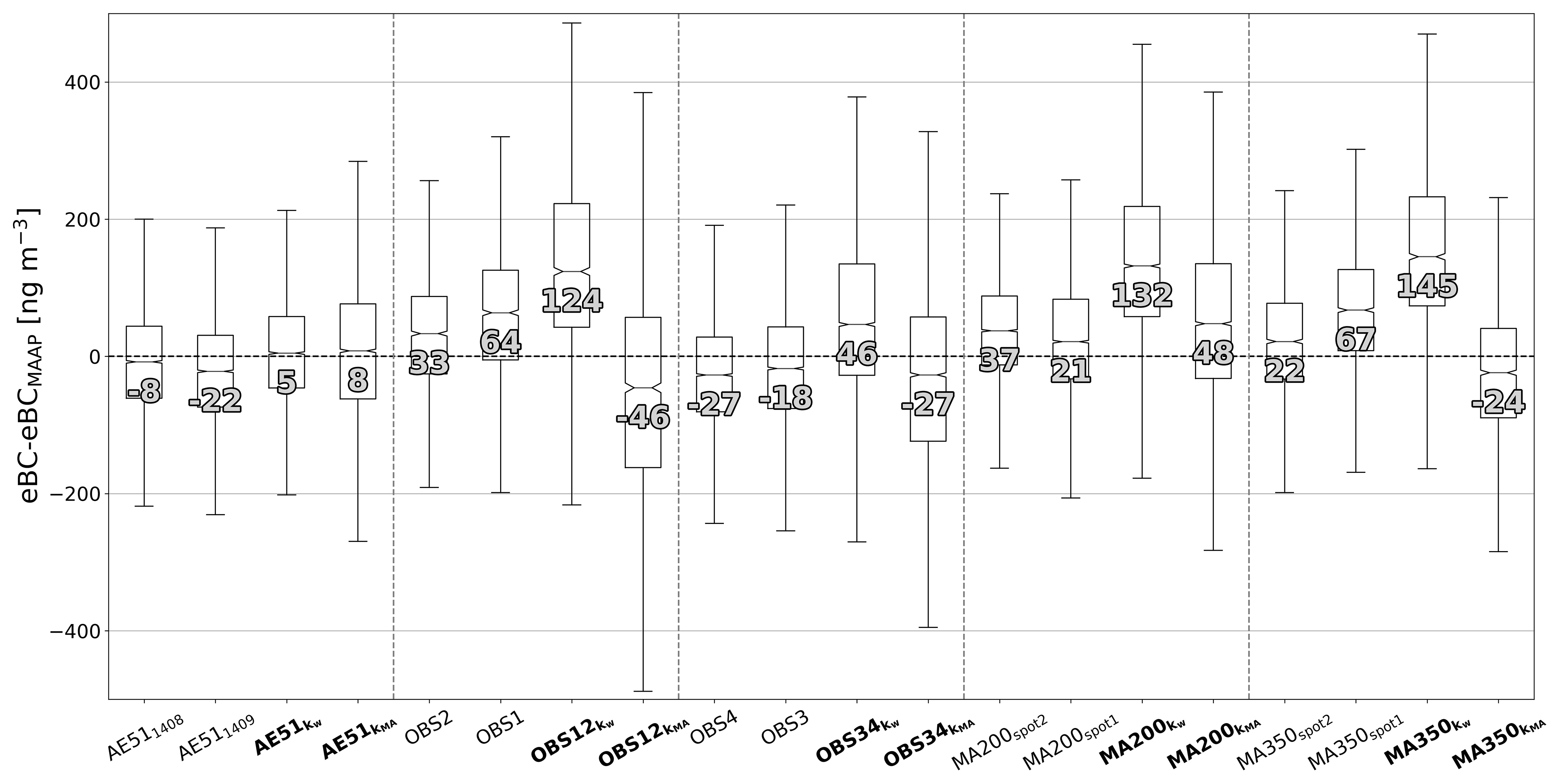

Figure 4The effect of the dual-spot correction during the intercomparison periods. The dual-spot correction is calculated with both correction factors k according to Eqs. (6) and (7). For the MA sensors the kMA correction is calculated by the instrument. Data are from both intercomparison periods in 5 min averages. In the plot the middle line shows the median, the top of the box the 75th percentile, the bottom of the box the 25th percentile, and the top and bottom whiskers the last points within 1.5 times the interquartile range. The values are the medians of the corresponding boxes.

Download

Due to the reduction of the precision in most (4/5) cases, it was decided that the correction is not implemented during the deployment, and spot 1 data are used with MA-series sensors. Instead, a simple calibration (see Sect. 3.1.2) was used to improve accuracy of the sensors in relation to the reference instrument, MAAP. The use of dual-spot correction was seen to be highly unstable with both correction methods.

3.1.2 Adjusting differences between sensors for comparison

To improve the accuracy and comparability of the sensor types, simple calibrations were applied to the data. Two calibrations were tested: the F factor and orthogonal regression line fit. The F factor was calculated according to Eq. (8), and the orthogonal fit calibrations were calculated by applying the sensor respective equations as seen in Fig. 3 and Table 4 to the data. The results of the calibrations can be seen in Fig. 5.

https://ar.copernicus.org/articles/3/293/2025/ar-3-293-2025-f05

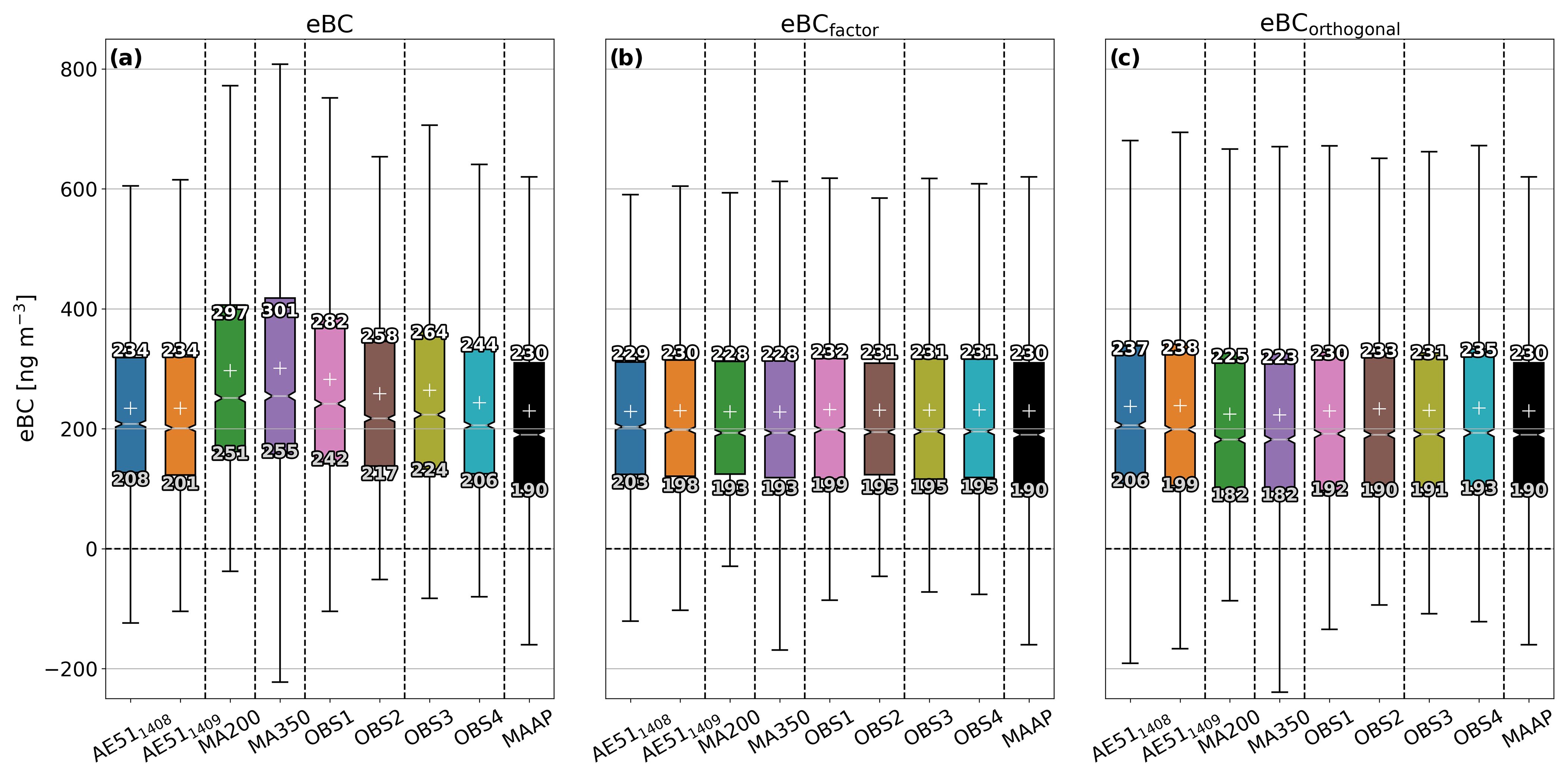

Figure 5Calibration methods: (a) data without calibration, (b) data calibrated by the F factor calculated by comparing first intercomparison data means, and (c) data calibrated with the orthogonal fit equations. In the box plots the middle line shows the median, “+” shows mean, the top of the box the 75th percentile, the bottom of the box the 25th percentile, and the top and bottom whiskers the last points within 1.5 times the interquartile range. The values are the mean (top) and median (bottom).

Download

The F-factor calibration reduced the spread of the data most aggressively. The medians agreed after the calibration within one standard error of the reference instrument. The orthogonal fit performed near equally to the F-factor calibration. For the MA series the orthogonal calibration overcompensated slightly, but for the Observair sensors this method performed better. After the calibration, mean and median values are within ±5 ng m−3 for the Observair sensors, ±8 ng m−3 for the MA series, and ±18 ng m−3 for the AE51s. All sensor medians were within 1 standard error of the reference (MAAP) after calibration. Figure 6 and Table 5 show the correlation between the data calibrated via the orthogonal fit and MAAP. The new orthogonal line fit intercepts and slopes are within ±4 ng m−3 and ±0.05, respectively.

https://ar.copernicus.org/articles/3/293/2025/ar-3-293-2025-f06

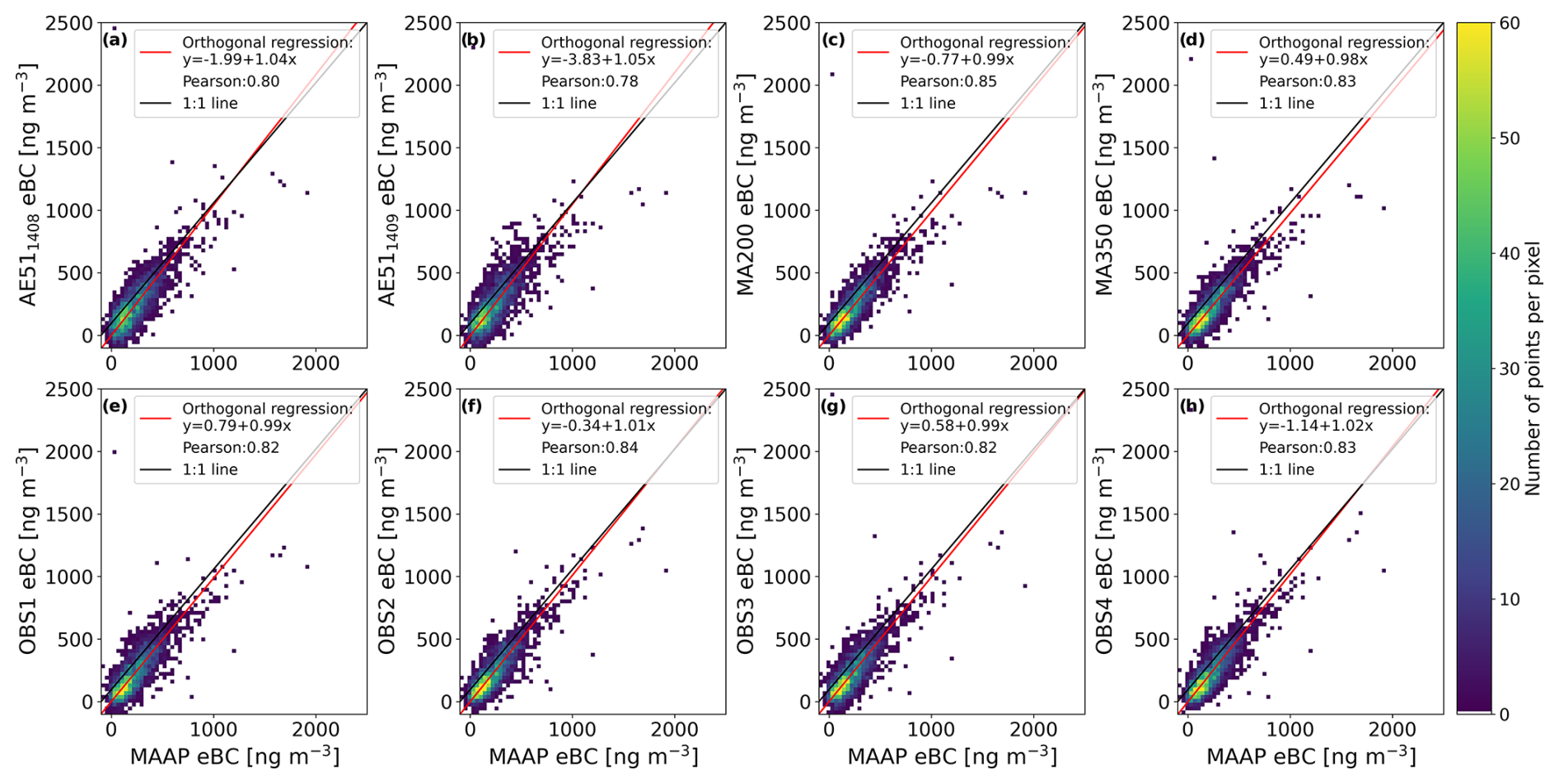

Figure 6Correlation and orthogonal regression line fits after calibrating with the orthogonal regression equations presented in Fig. 3 and Table 4. Data are from the first intercomparisons during 26 May–6 June 2022 as 5 min averages.

Download

Table 5Table of the effects of the calibration with the orthogonal regression.

Download Print Version | Download XLSX

The orthogonal regression fit was selected as it considers variation of the sensors and the reference. The whole data set was calibrated according to the orthogonal fit equations determined from the first intercomparison. During the analysis this calibration step was observed to be imperative as it reduced the differences between the locations during the deployment phase. Without the calibration, differences between locations could have been incorrectly seen as differences in sources, when in fact they were just differences between the instruments. A similar approach has been used before by Petäjä et al. (2021) for cost-effective gas and PM2.5 analyzers for urban air quality measurements.

3.2 Temporal and spatial variability during deployment

3.2.1 General features and spatial variability of eBC in Kumpula

Figure 7 presents the time series of the whole deployment period (4 July–16 September 2022) for all the sensors. The 2-week period (4–19 July 2022), when all the sensors were operational (the Froof sensor stopped working in 19 July), is marked in Fig. 7b, and a comparison during this period can be seen in Fig. 8a. All locations had a statistically significant difference (Fig. A1), although the differences were not necessarily remarkable.

https://ar.copernicus.org/articles/3/293/2025/ar-3-293-2025-f07

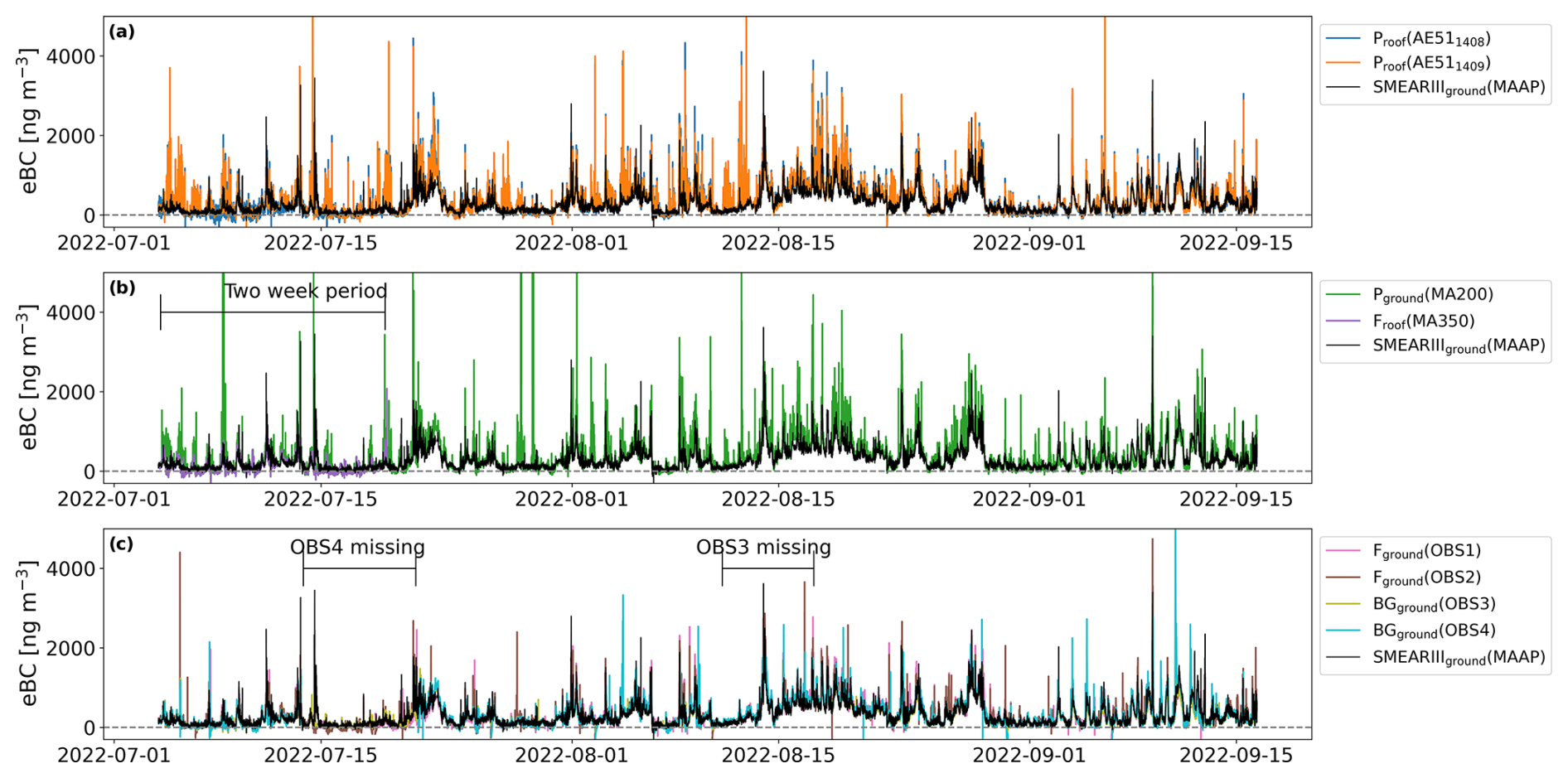

Figure 7Time series of eBC for the deployment period for (a) AE51 sensors, (b) MA-series sensors, and (c) Observair (OBS) sensors. Each panel also has the SMEAR IIIground measurement by the multi-angle absorption photometer (MAAP) reported. Data are in 5 min averages. The 2-week period, when all the instruments were operational, is marked in panel (b), and the periods when OBS3&4 sensors were malfunctioning are marked in panel (c).

Download

https://ar.copernicus.org/articles/3/293/2025/ar-3-293-2025-f08

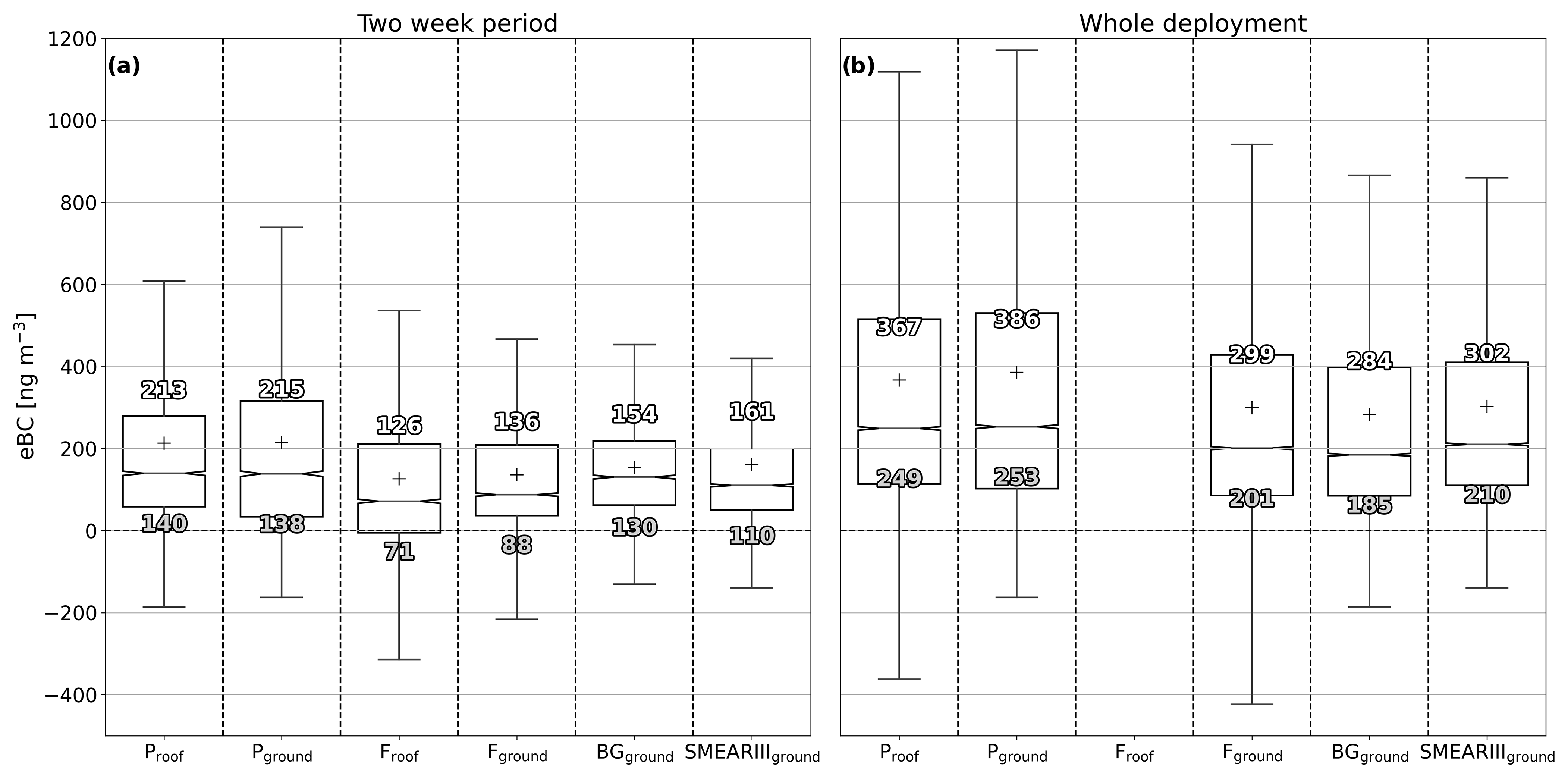

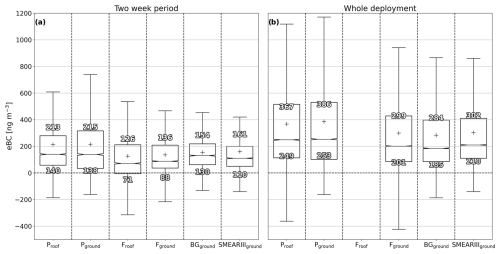

Figure 8Box plots of the deployment period: (a) data are only from the first 15 d (4–19 July) of the deployment when all the instruments were operational, and (b) data are from the whole deployment phase (74 d). The explanation for the boxes is the same as in Fig. 5.

Download

The Froof and Fground locations had the lowest concentrations, and the highest concentrations of eBC were measured at Proof and Pground, respectively. At Proof and Pground, multiple short-term high-concentration peaks were observed, possibly caused by the proximity of the bus stop. The bus stop has approximately 160 buses stopping on it per day, with the peak during the day having 9 to 12 buses per hour. BGground showed similar median concentration to the Proof and Pground locations but without the local source peaks at the Proof and Pground. At SMEAR IIIground, we observed slightly higher concentrations than at the closest site Fground but lower than the Proof and Pground locations. The local source peaks for MAAP at SMEAR IIIground were in between the magnitudes of the respective Froof and Fground to Proof and Pground values. A minimal vertical difference in the eBC concentration was observed between the Proof and Pground locations. Similarly, at Froof and Fground, respectively, a minimal vertical difference was observed.

When considering the whole deployment period (Fig. 8b), two distinct areas could be identified: the locations closer to the Kustaa Vaasa road of Proof and Pground and the further away backgrounds of Fground, SMEAR IIIground, and BGground. The difference between the areas is perhaps traffic proximity due to the Kustaa Vaasa road and bus traffic past the Proof and Pground locations. This causes Proof and Pground to measure approximately 50 ng m−3 higher concentrations. The difference is relatively negligible as the instrument precisions are in the same magnitudes, and the ambient conditions are challenging for the sensors.

The overall concentrations were lower than in previous studies conducted in the Helsinki region. Luoma et al. (2021a) reported annual means of 510 to 530 ng m−3 at urban background cites. Helin et al. (2018) reported average ± standard deviation concentrations of 1940 ± 1530 ng m−3 in a street canyon and 450 ± 420 ng m−3 in a detached residential area in the summertime of 2016. The concentrations were similar to corresponding values of urban background cites during summers of 2017–2019 within northern Europe ( 240–340 ng m−3) and lower than in western and central Europe ( 330–1480 ng m−3) (Table S2, Savadkoohi et al., 2023).

In comparison to Caubel et al. (2019), who operated 100 eBC sensors for 100 d in a borough-sized area, we only observed small variations within the much smaller campus area. Caubel et al. (2019) reported considerably larger differences between the sensor locations: for example, 200–400 ng m−3 in upwind locations that were less affected by the anthropogenic activities and 500–1200 ng m−3 in a busy port environment. Residential concentrations were reported to be slightly higher on average, at 400–500 ng m−3, in comparison to the 250–400 ng m−3 measured in this study.

Sources of the BC were studied with a wind rose analysis shown in Fig. 9. The wind roses for different locations mostly tell a similar story: the highest eBC concentrations were measured with low wind speeds especially blowing from the east, when the eBC was transported to the campus area from the busy road (Kustaa Vaasan tie). The low wind speeds were also tied to the evening times with the accumulation of pollutants due to the more stable atmosphere.

The effect of the nearby construction site was not clearly visible in the data. Only at the Pground and Proof locations were there some increased concentrations from the direction of the construction site (southwest). For SMEAR IIIground or Fground, the direction of the construction site (northeast) did not stand out. At SMEAR IIIground, increased concentrations on higher wind speeds from the west were observed, which is probably caused by a single pollution event and was captured due to the higher inlet location. For Proof this direction is also shielded by the building where this location resides. Similar results have also been reported by Alas et al. (2019), who did not observe increased eBC concentrations close to construction sites.

https://ar.copernicus.org/articles/3/293/2025/ar-3-293-2025-f09

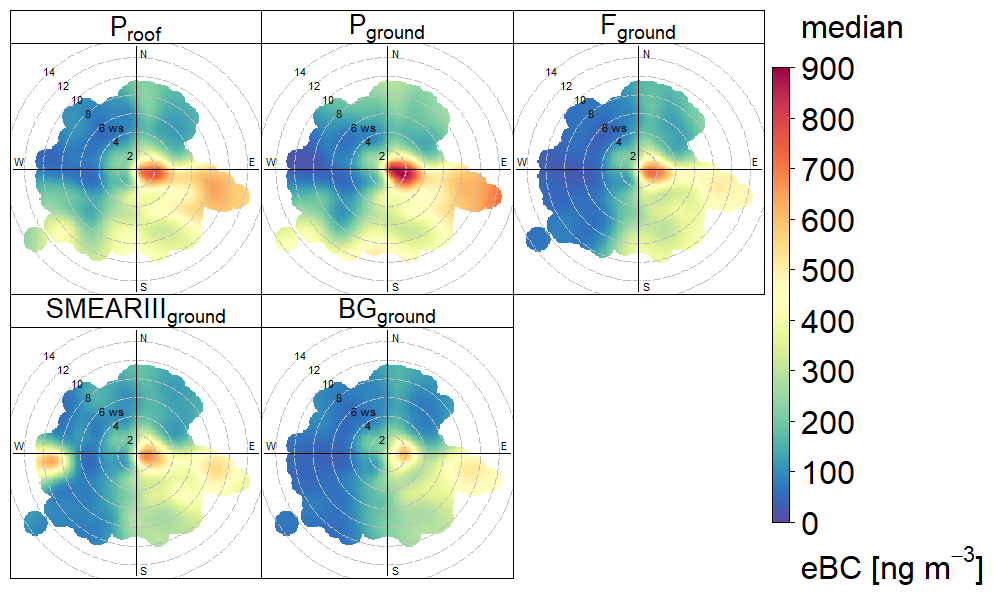

Figure 9Wind roses of the deployment phase showing median eBC concentration measured with different sensors as a function of wind speed (WS; in units of [m s−1]) and direction.

Download

3.2.2 eBC concentration during days of the week

A daily breakdown can be seen in Fig. 10. There is somewhat surprising variation on day-to-day basis, as no notable differences were expected between weekdays. At all the locations, Monday and Tuesday had statistically significantly (Fig. A2) higher concentrations than Wednesday and Thursday. The most stable locations were Fground and SMEAR IIIground, where there was no statistically significant difference between Monday, Tuesday, Friday, Saturday, and Sunday. Therefore, the weekend and weekdays did not seem to have a clear difference in the medians to each other, which differs compared to other studies that observed lower eBC concentrations during weekends at traffic and at urban background sites in Helsinki (Helin et al., 2018; Luoma et al., 2021a). Also, Caubel et al. (2019) reported lower concentrations during weekends, especially in traffic-influenced cites. It is to be noted that the variance in concentrations was higher during Friday–Sunday than during Monday–Thursday, and the highest peaks were measured during the weekend. The unexpected similarity between the weekdays and weekends might be due to a rather short period (74 d) for such an analysis and the time of the deployment period, which is a vacation season in Finland, when the anthropogenic activities are expected to depend less on the days of the week.

https://ar.copernicus.org/articles/3/293/2025/ar-3-293-2025-f10

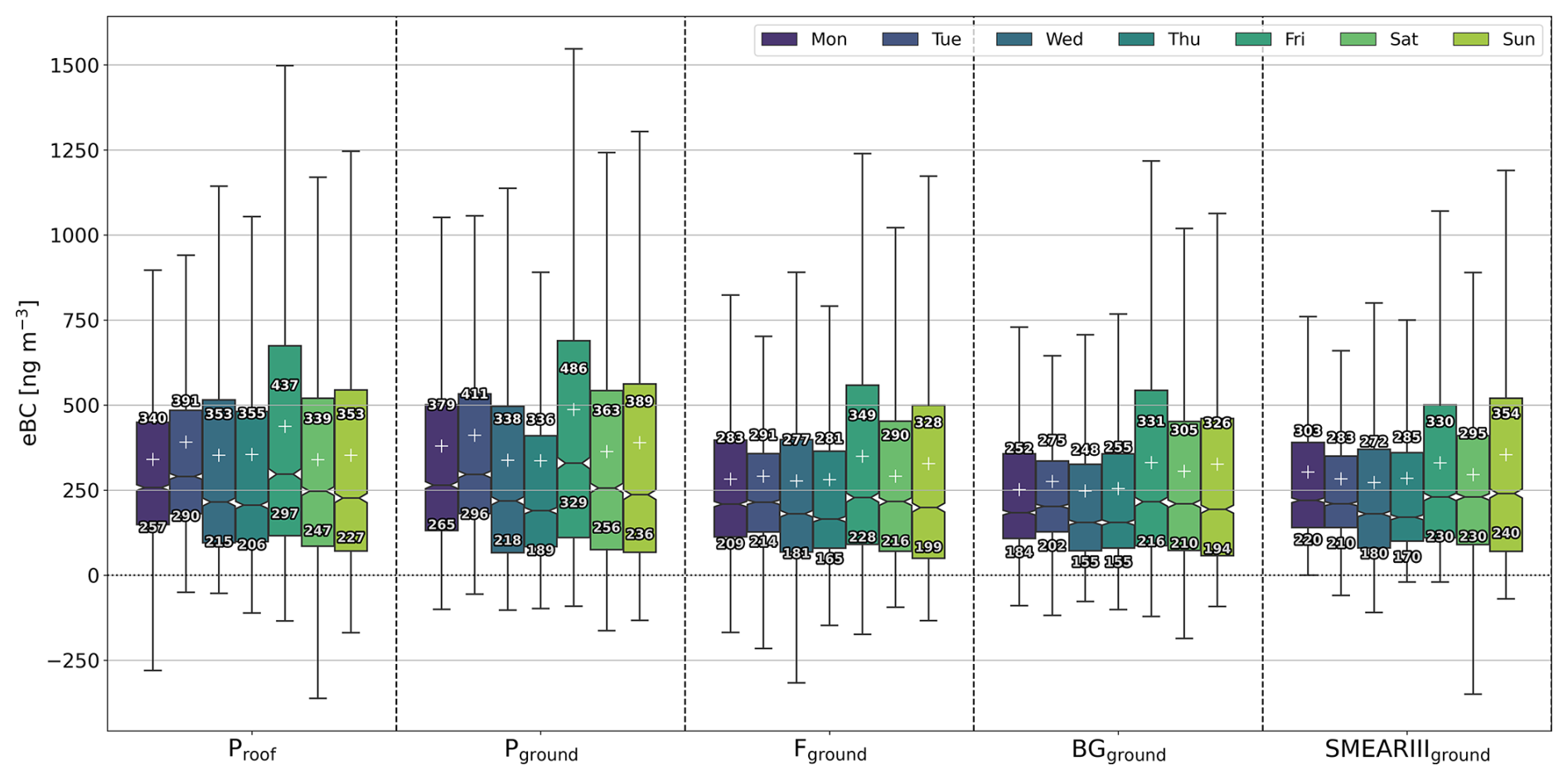

Figure 10Daily eBC concentrations for different sensors. In the box plot every sensor has seven boxes, from left to right for Monday–Sunday (indicated with different colors). The explanation for the boxes is the same as in Fig. 5.

Download

Proof (AE51) filters were most commonly changed Monday and Friday and Fground and BGground (Observair) Monday–Wednesday with the only exception of Friday 19 August. With the single-filter instruments, the significant loading effects should be considered as a pattern of data collection behavior could implicate false patterns of eBC in the daily variability. However, a rather similar day-to-day pattern is observed at all the different sites, even at SMEAR IIIground and Pground, where the filter was changed automatically at random periods. Therefore, we can conclude that the weekday variation seen in the eBC concentrations was not remarkably influenced by the filter changing cycles.

3.2.3 Diurnal variation in BC concentration

The diurnal variation of eBC can be seen in Fig. 11, which shows a similar diurnal pattern at all the locations. The variation is affected by the local and regional anthropogenic activities and meteorological conditions. The eBC concentrations sharply rose during the morning due to an increase in traffic. The highest concentrations were reached between 09:00–10:00 UTC+3 (for all instances of time in the text) after which the concentrations decreased due to smaller traffic rates, increased dilution in the convective boundary layer due to higher mixing height, and increased wind speeds (e.g., Fig. S2 in Luoma et al., 2021a). Another rise in concentration was observed late in the evening around 21:00–23:00. This increase was much less compared to the morning peak. The increased levels during the evenings are probably caused by accumulation of pollutants in a more stable atmosphere when the mixing height is lower and the wind speeds are also generally lower. Based on observations made in Helsinki, Järvi et al. (2009) reported that out of the meteorological parameters, the wind speed and mixing height had the greatest effect on eBC concentrations. Also, local wood combustion emissions, for example, evening activities at the nearby community garden, can increase the eBC levels. Similar diurnal patterns with a peak in the morning and evening have been observed by previous studies during the warm period at traffic and urban background sites (Sahu et al., 2011; Backman et al., 2012; Caubel et al., 2019; Luoma et al., 2021a).

https://ar.copernicus.org/articles/3/293/2025/ar-3-293-2025-f11

Figure 11Hourly variation of eBC concentrations. In the box plot every sensor has 24 boxes going from 00:00–23:00, where the box describes the hour of the day. The explanation for the boxes is the same as in Fig. 5.

Download

3.2.4 Artifacts caused by sensor overheating

During the measurements overheating of sensors was observed in all locations utilizing the weatherproof boxes (Pground, Froof, Fground, BGground). This was due to the increase in ambient temperature after sunrise and in some locations direct sunlight heating the black weatherproof boxes.

With the MA-series sensors (MA200, MA350) the change in the T and RH caused clearly erroneous data, as seen in Figs. 12 and 13. According to the instrument manual, the operating temperature for the instrument is 0–40 °C. In our deployment, the T increases even to 52 °C, which is above the operating temperature and could explain the behavior. However, the anomalous activity is observed even below 40 °C. Previous studies have shown that sharp changes in T and RH can cause positive or negative spikes in the measurement of filter-based optical methods (Caubel et al., 2018; Düsing et al., 2019). The reason for this artifact is considered to be mostly influenced by the detector, LED properties, and other electronics affected by the T change and sorption and desorption of the filter fibers due to changing RH. The largest error in the measurement is when the T change was the fastest, around 09:00–11:00 in the morning. The dual-spot correction was observed to amplify the measurement error of the individual spots.

https://ar.copernicus.org/articles/3/293/2025/ar-3-293-2025-f12

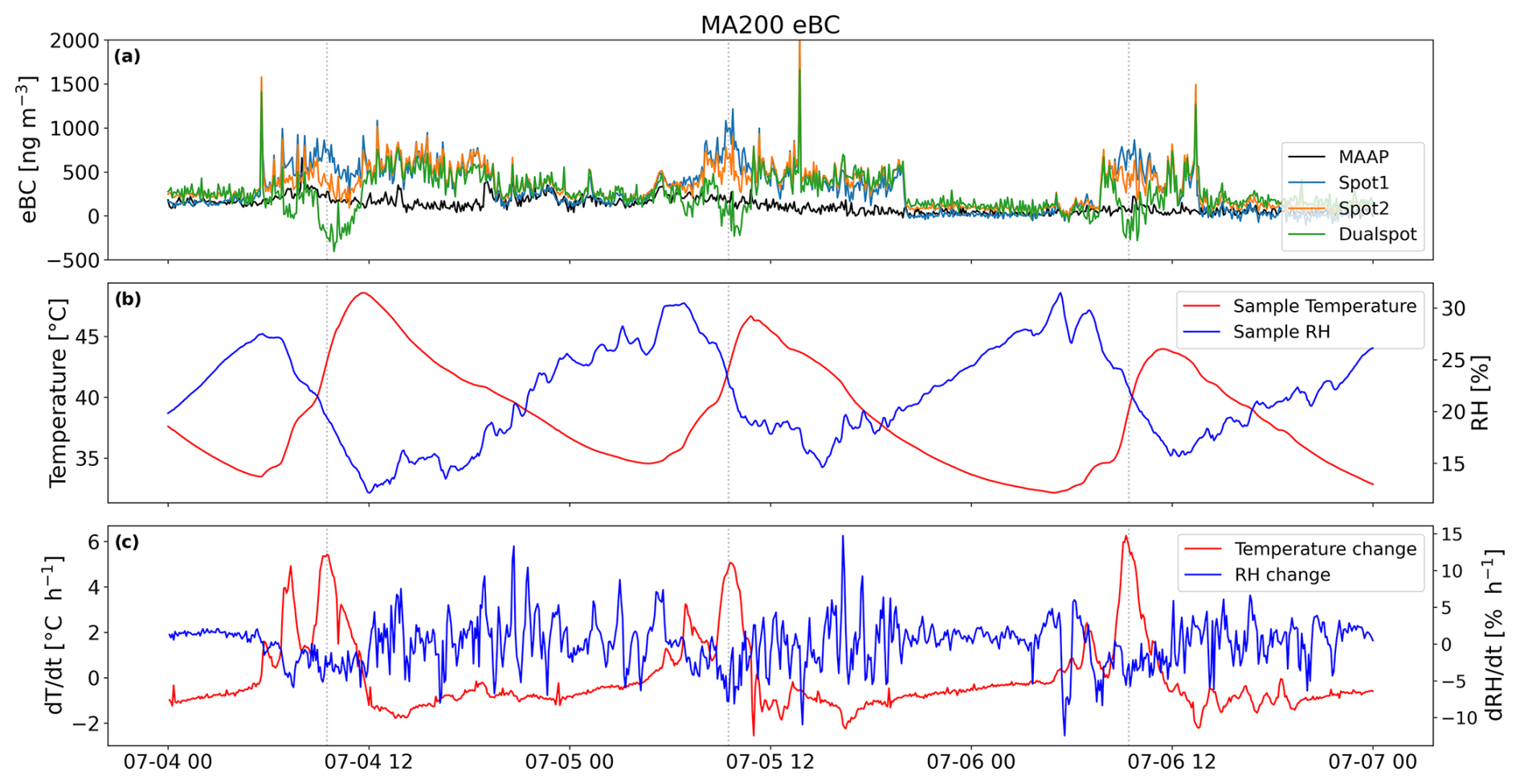

Figure 12Example of the MA200 T–RH artifact as time series of (a) eBC, (b) temperature (T) and relative humidity (RH), and (c) the T and RH change rate (dT dt−1 and dRH dt−1, respectively). All data are 5 min averages.

Download

https://ar.copernicus.org/articles/3/293/2025/ar-3-293-2025-f13

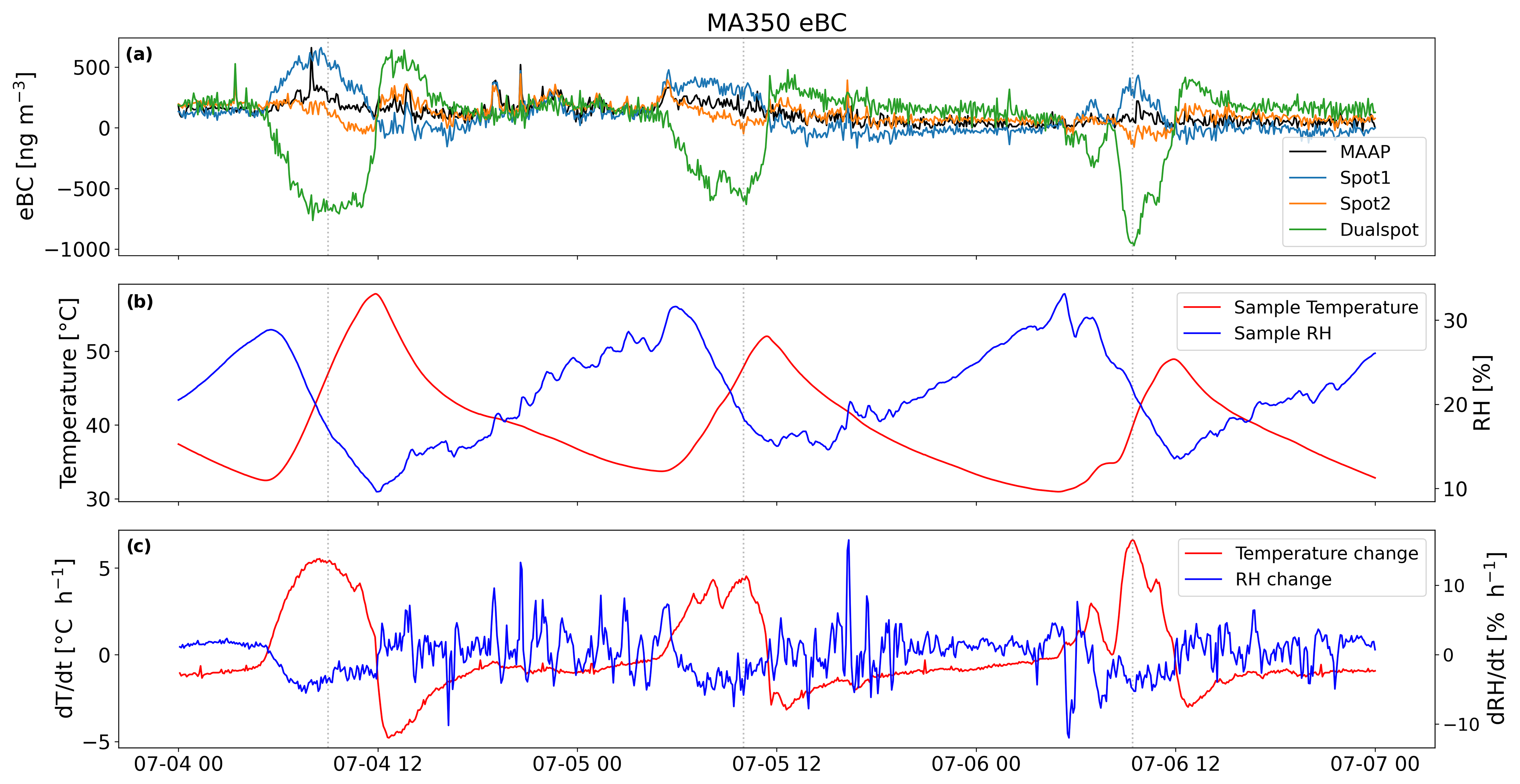

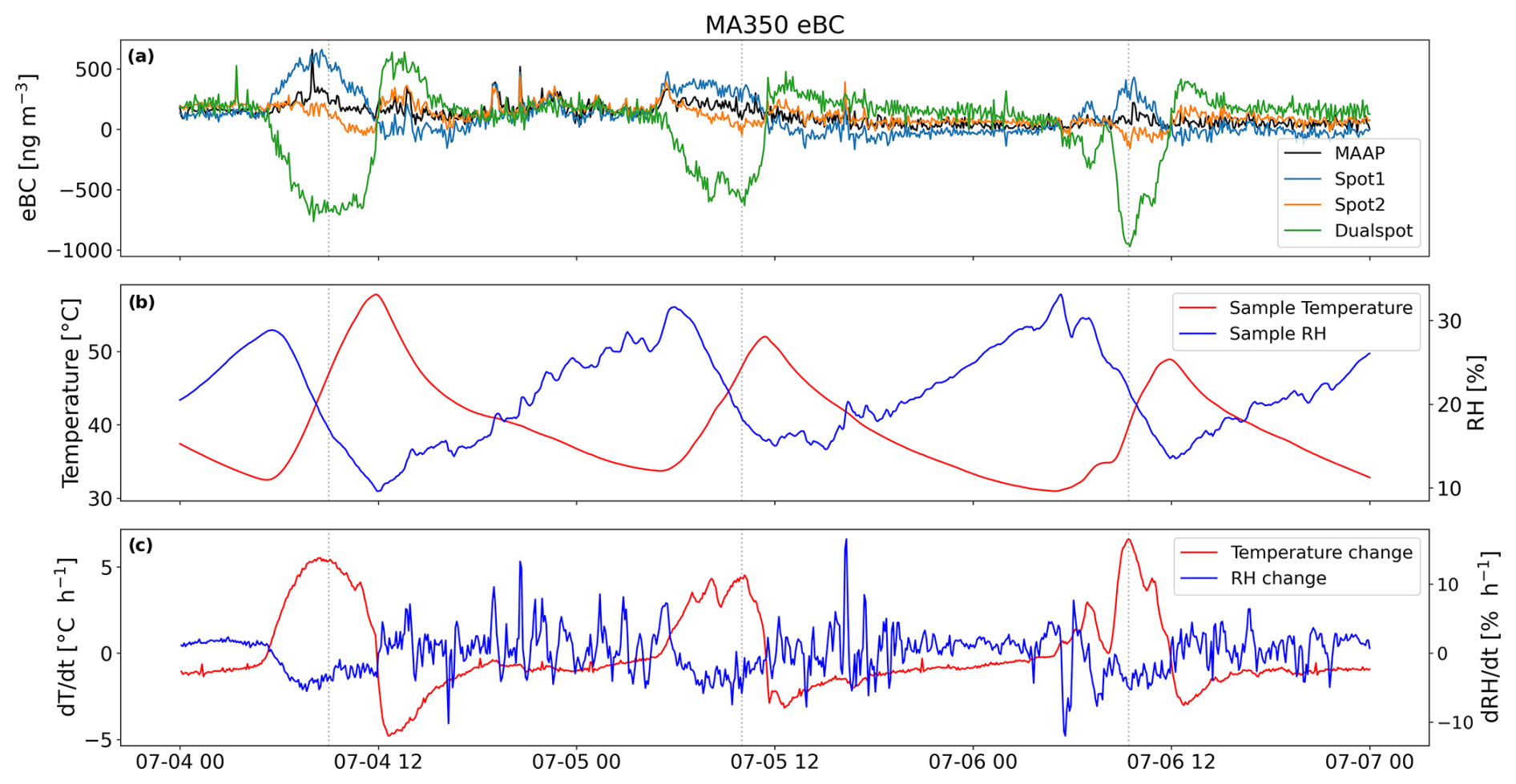

Figure 13Example of the MA350 T–RH artifact as time series of (a) eBC, (b) temperature (T) and relative humidity (RH), and (c) the T and RH change rate (dT dt−1 and dRH dt−1, respectively). All data are 5 min averages.

Download

For the Observair sensors (Fground and BGground) the influence of overheating was negligible when compared to SMEAR IIIground, due to the automatic environmental compensation algorithm used in the sensors described in Caubel et al. (2018).

The large overall change in T most likely caused a strain on the pumps reducing the lifetime of the sensors. This may have contributed to the failure of the MA350 sensor pump during deployment. With AE51, at the Proof, no problems related to T and RH were observed due to the deployment location being inside in a controlled laboratory space, but similar behavior could be expected if these sensors are deployed in ambient conditions.

4 Conclusions

In this study, four different types of eBC sensors were used as a sensor network firstly to study variation of eBC in urban environment and secondly to study applicability of eBC sensors to monitor ambient BC concentrations in real conditions. The results were compared to reference level instrument results to validate the results.

During the intercomparison periods, the correlations between different eBC sensors and the reference instrument were good (R 0.8, 5 min averages), but the slopes of the regression lines varied from 0.8 to 1.1, indicating a need for sensor-specific calibration. The eBC sensors observed the temporal variation well, and the eBC levels varied according to anthropogenic activities in the local and regional area (e.g., in the nearby busy road) and meteorological conditions. For the spatial variation we observed only small variation. Surprisingly, the local construction site, which was assumed to cause an increase in eBC data, did not stand out in the results. Due to the lack of local emission sources in the studied area, the variation in eBC in an urban background location was observed to be minimal. Based on our results, the reference-scale SMEAR III station, which is classified as an urban background site, represents the pollution levels in the campus area well. Taking the sensor network closer to local anthropogenic sources (e.g., right next to a busy road), the gradients of eBC concentration are expected to be more remarkable.

Due to their small size, enabling easy installation on existing structures (like sheds or roofs), and affordability, the sensors were observed to be well suited to building a sensor network in an urban area. However, still in field conditions, several issues were observed. The performance of the dual-spot correction should be evaluated before field campaigns for small-scale sensors that have the capability for this correction. Due to the small size and much lower flow rates, the sensors show significant instability in the determination of the correction parameter k with the available methods. In this study, during the intercomparison, measurements with the dual-spot corrections were unstable in temperature-controlled environments. During deployment measurements, changes in temperature caused additional errors in the measurements of the individual spots, which were amplified by the dual-spot correction. This effect is especially important with sensors like the MA200 and MA350, which by default give the measurement result as the dual-spot-corrected data.

Temperature changes significantly affected the measurements and provided a challenge in the deployment of the sensor network. Development of robust enclosures or deployment in locations that have stable or controlled temperature is needed. Alternatively, the environmental compensation used by the Observair sensors was seen to reduce the effect of temperature changes. Therefore, a suggestion is made that the environmental compensation utilized by the Observair and outlined in Caubel et al. (2018) could be applied as a measurement method to the data via post-processing or implemented to other sensors by manufacturers as a solution to the temperature artifacts.

It is not possible to say which sensor performed the best as the sensor design differs significantly. The user needs to take into account the requirements of the measurement environment and the features of the individual sensor types (number of wavelengths, filter capacity, other maintenance needs, and price). In our conditions, sensors performed near equally if single-spot data were used for the MA sensors. Observair performed slightly more stably in changing conditions. Comparing the instrument performance, it is to be noted that AE51 was run in a temperature-controlled environment, while Observair and MA-series sensors were exposed to varying temperature in the deployment boxes. With AE51 and Observair the filter change needs to be done every few days, whereas MA sensors can measure independently for months. MA sensors also offer the wavelengths for estimating BrC concentration, which were not utilized in this study.

Appendix A: Flow calibrations during the campaign

The sensor flow rates were calibrated before the measurements (on 25.5) with a Alicat Scientific M-series mass flow meter. The calibration was done manually according to the operating manuals for the AE51 and Observair instruments, and the automatic flow calibration program was used for the MA-series sensors. For OBS1 the flow calibration was ±2 mL min−1 and for the other AE51 and OBS sensors ±1 mL min−1. The MA sensors passed the automatic calibration program. OBS1 and 2 flows were checked after the first intercomparison. MA350 was flow-calibrated on 9.8. All OBS flows were calibrated on 19.8, and results were within ±1 mL min−1. On 30.8 all sensors were flow-calibrated. AE51s were within ±1 mL min−1, and OBSs were within ±2 mL min−1. MA200 flow calibration failed, and the flow given by the instrument in relation to the flow meter was +4 mL min−1. Also, during the calibration AE511408 could not reach the maximum flow of the pump of 250 mL min−1, therefore showing fatigue and deterioration of the pump. The results of flow calibrations are collected in Table A1.

Table A1Flow calibrations of the BC sensors during the measurements.

Download Print Version | Download XLSX

A1 Statistical significance during deployment

During the deployment statistically significant differences were observed between all locations, as seen in Fig. A1. The highest p value is observed between SMEAR III and Fground, which are the closest proximity sites at similar height. This value is still significantly lower than 0.05. The statistical significance between weekdays for every location is presented in Fig. A2.

https://ar.copernicus.org/articles/3/293/2025/ar-3-293-2025-f14

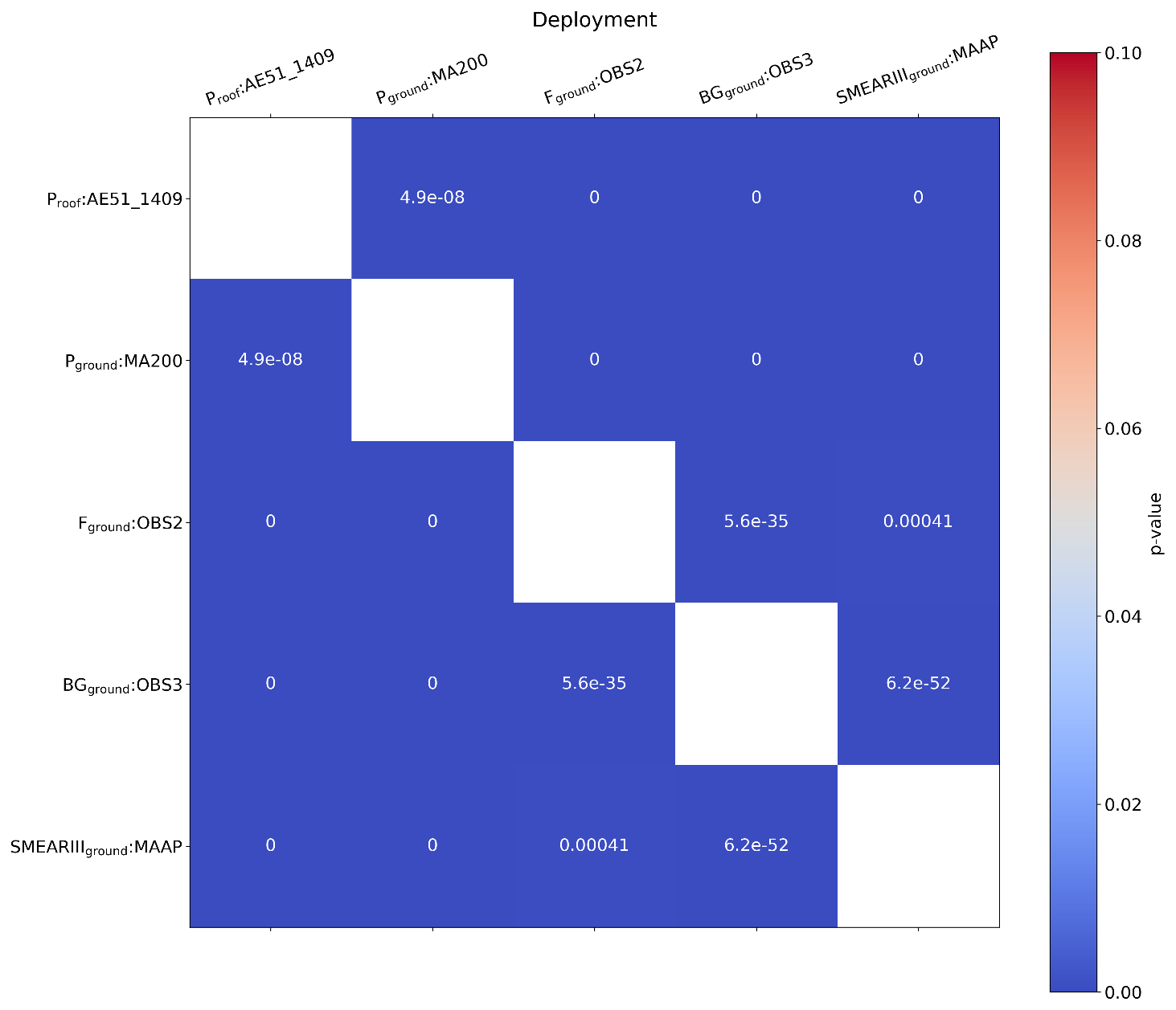

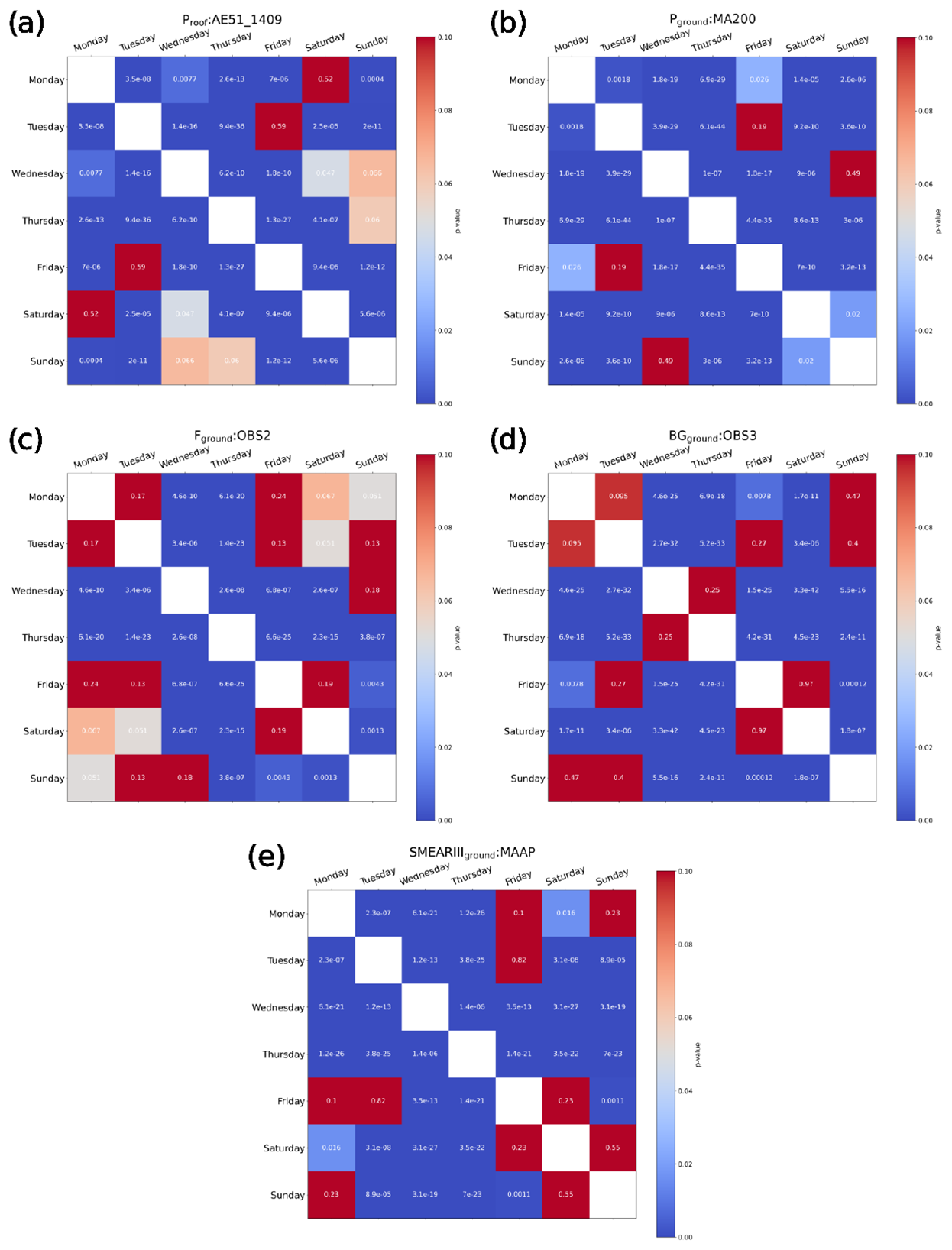

Figure A1Statistical significance between the locations during the deployment phase. The p values are calculated with the Wilcoxon signed-rank test.

Download

https://ar.copernicus.org/articles/3/293/2025/ar-3-293-2025-f15

Figure A2Statistical significance between the weekdays during the deployment phase for every measurement location. The p values are calculated with the Wilcoxon signed-rank test.

Download

Code and data availability

Codes and data used in this study can be obtained upon request from the corresponding author (tapio.elomaa@helsinki.fi).

Author contributions

TE did the data analysis and main part of the writing with the help by KL. TE and SH were the main people responsible for building the sensor network and keeping it running. All the authors contributed to the planning of the study, interpreted the data, and commented on the manuscript. HT and TP supervised the work and organized the funding.

Competing interests

At least one of the (co-)authors is a member of the editorial board of Aerosol Research. The peer-review process was guided by an independent editor, and the authors also have no other competing interests to declare.

Disclaimer

Publisher's note: Copernicus Publications remains neutral with regard to jurisdictional claims made in the text, published maps, institutional affiliations, or any other geographical representation in this paper. While Copernicus Publications makes every effort to include appropriate place names, the final responsibility lies with the authors.

Financial support

This research has been supported by the Urban Air Quality 2.0 project, funded by Technology Industries of Finland Centennial Foundation, EU H2020 project RI-URBANS (grant agreement no. 101036245); the Academy of Finland via the project Black and Brown Carbon in the Atmosphere and the Cryosphere (BBrCAC) (decision no. 341271); and the Academy of Finland Flagship program (grant nos. 337552 and 337549).

Review statement

This paper was edited by Naďa Zíková and reviewed by four anonymous referees.

References

Alas, H. D. C., Weinhold, K., Costabile, F., Di Ianni, A., Müller, T., Pfeifer, S., Di Liberto, L., Turner, J. R., and Wiedensohler, A.: Methodology for high-quality mobile measurement with focus on black carbon and particle mass concentrations, Atmos. Meas. Tech., 12, 4697–4712, https://doi.org/10.5194/amt-12-4697-2019, 2019. 

Alas, H. D. C., Müller, T., Weinhold, K., Pfeifer, S., Glojek, K., Gregorič, A., Močnik, G., Drinovec, L., Costabile, F., Ristorini, M., and Wiedensohler, A.: Performance of microaethalometers: Real-world field intercomparisons from multiple mobile measurement campaigns in different atmospheric environments, Aerosol Air Qual. Res., 20, 2640–2653, https://doi.org/10.4209/aaqr.2020.03.0113, 2020. 

Arnott, W. P., Hamasha, K., Moosmüller, H., Sheridan, P. J., and Ogren, J. A.: Towards Aerosol Light-Absorption Measurements with a 7-Wavelength Aethalometer: Evaluation with a Photoacoustic Instrument and 3-Wavelength Nephelometer, Aerosol Sci. Technol., 39, 17–29, https://doi.org/10.1080/027868290901972, 2005. 

Backman, J., Rizzo, L. V., Hakala, J., Nieminen, T., Manninen, H. E., Morais, F., Aalto, P. P., Siivola, E., Carbone, S., Hillamo, R., Artaxo, P., Virkkula, A., Petäjä, T., and Kulmala, M.: On the diurnal cycle of urban aerosols, black carbon and the occurrence of new particle formation events in springtime São Paulo, Brazil, Atmos. Chem. Phys., 12, 11733–11751, https://doi.org/10.5194/acp-12-11733-2012, 2012. 

Backman, J., Schmeisser, L., Virkkula, A., Ogren, J. A., Asmi, E., Starkweather, S., Sharma, S., Eleftheriadis, K., Uttal, T., Jefferson, A., Bergin, M., Makshtas, A., Tunved, P., and Fiebig, M.: On Aethalometer measurement uncertainties and an instrument correction factor for the Arctic, Atmos. Meas. Tech., 10, 5039–5062, https://doi.org/10.5194/amt-10-5039-2017, 2017. 

Bernardoni, V., Ferrero, L., Bolzacchini, E., Forello, A. C., Gregorič, A., Massabò, D., Močnik, G., Prati, P., Rigler, M., Santagostini, L., Soldan, F., Valentini, S., Valli, G., and Vecchi, R.: Determination of Aethalometer multiple-scattering enhancement parameters and impact on source apportionment during the winter 2017/18 EMEP/ACTRIS/COLOSSAL campaign in Milan, Atmos. Meas. Tech., 14, 2919–2940, https://doi.org/10.5194/amt-14-2919-2021, 2021. 

Bond, T. C. and Bergstrom, R. W.: Light Absorption by Carbonaceous Particles: An Investigative Review, Aerosol Sci. Tech., 40, 27–67, https://doi.org/10.1080/02786820500421521, 2006. 

Bond, T. C., Anderson, T. L., and Campbell, D.: Calibration and Intercomparison of Filter-Based Measurements of Visible Light Absorption by Aerosols, Aerosol Sci. Tech., 30, 582–600, https://doi.org/10.1080/027868299304435, 1999. 

Bond, T. C., Doherty, S. J., Fahey, D. W., Forster, P. M., Berntsen, T., DeAngelo, B. J., Flanner, M. G., Ghan, S., Kärcher, B., Koch, D., Kinne, S., Kondo, Y., Quinn, P. K., Sarofim, M. C., Schultz, M. G., Schulz, M., Venkataraman, C., Zhang, H., Zhang, S., Bellouin, N., Guttikunda, S. K., Hopke, P. K., Jacobson, M. Z., Kaiser, J. W., Klimont, Z., Lohmann, U., Schwarz, J. P., Shindell, D., Storelvmo, T., Warren, S. G., and Zender, C. S.: Bounding the role of black carbon in the climate system: A scientific assessment, J. Geophys. Res.-Atmos., 118, 5380–5552, https://doi.org/10.1002/jgrd.50171, 2013. 

Carslaw, D. C. and Ropkins, K.: openair – An R package for air quality data analysis, Environ. Modell. Softw., 27–28, 52–61, https://doi.org/10.1016/j.envsoft.2011.09.008, 2012. 

Caubel, J. J., Cados, T. E., and Kirchstetter, T. W.: A new black carbon sensor for dense air quality monitoring networks, SensorsBasel, 18, 738, https://doi.org/10.3390/s18030738, 2018. 

Caubel, J. J., Cados, T. E., Preble, C. V., and Kirchstetter, T. W.: A Distributed Network of 100 Black Carbon Sensors for 100 Days of Air Quality Monitoring in West Oakland, California, Environ. Sci. Technol., 53, 7564–7573, https://doi.org/10.1021/acs.est.9b00282, 2019. 

Chakraborty, M., Giang, A., and Zimmerman, N.: Performance evaluation of portable dual-spot micro-aethalometers for source identification of black carbon aerosols: application to wildfire smoke and traffic emissions in the Pacific Northwest, Atmos. Meas. Tech., 16, 2333–2352, https://doi.org/10.5194/amt-16-2333-2023, 2023. 

Collaud Coen, M., Weingartner, E., Apituley, A., Ceburnis, D., Fierz-Schmidhauser, R., Flentje, H., Henzing, J. S., Jennings, S. G., Moerman, M., Petzold, A., Schmid, O., and Baltensperger, U.: Minimizing light absorption measurement artifacts of the Aethalometer: evaluation of five correction algorithms, Atmos. Meas. Tech., 3, 457–474, https://doi.org/10.5194/amt-3-457-2010, 2010. 

Delgado-Saborit, J. M.: Use of real-time sensors to characterise human exposures to combustion related pollutants, J. Environ. Monitor., 14, 1824–1837, https://doi.org/10.1039/c2em10996d, 2012. 

Di Biagio, C., Formenti, P., Cazaunau, M., Pangui, E., Marchand, N., and Doussin, J.-F.: Aethalometer multiple scattering correction Cref for mineral dust aerosols, Atmos. Meas. Tech., 10, 2923–2939, https://doi.org/10.5194/amt-10-2923-2017, 2017. 

Distributed Sensing Technologies: Observair Operating Manual, https://www.dstech.io/_files/ugd/18a7e0_86bdb3ebd54a49aaaa64e075e1e69604.pdf (last access: 1 February 2024), 2023. 

Drinovec, L., Močnik, G., Zotter, P., Prévôt, A. S. H., Ruckstuhl, C., Coz, E., Rupakheti, M., Sciare, J., Müller, T., Wiedensohler, A., and Hansen, A. D. A.: The “dual-spot” Aethalometer: an improved measurement of aerosol black carbon with real-time loading compensation, Atmos. Meas. Tech., 8, 1965–1979, https://doi.org/10.5194/amt-8-1965-2015, 2015. 

Düsing, S., Wehner, B., Müller, T., Stöcker, A., and Wiedensohler, A.: The effect of rapid relative humidity changes on fast filter-based aerosol-particle light-absorption measurements: uncertainties and correction schemes, Atmos. Meas. Tech., 12, 5879–5895, https://doi.org/10.5194/amt-12-5879-2019, 2019. 

Enroth, J., Saarikoski, S., Niemi, J., Kousa, A., Ježek, I., Močnik, G., Carbone, S., Kuuluvainen, H., Rönkkö, T., Hillamo, R., and Pirjola, L.: Chemical and physical characterization of traffic particles in four different highway environments in the Helsinki metropolitan area, Atmos. Chem. Phys., 16, 5497–5512, https://doi.org/10.5194/acp-16-5497-2016, 2016. 

Hansen, A. D. A., Rosen, H., and Novakov, T.: The aethalometer – An instrument for the real-time measurement of optical absorption by aerosol particles, Sci. Total Environ., 36, 191–196, https://doi.org/10.1016/0048-9697(84)90265-1, 1984. 

Harris, C. R., Millman, K. J., van der Walt, S. J., Gommers, R., Virtanen, P., Cournapeau, D., Wieser, E., Taylor, J., Berg, S., Smith, N. J., Kern, R., Picus, M., Hoyer, S., van Kerkwijk, M. H., Brett, M., Haldane, A., del Río, J. F., Wiebe, M., Peterson, P., Gérard-Marchant, P., Sheppard, K., Reddy, T., Weckesser, W., Abbasi, H., Gohlke, C., and Oliphant, T. E.: Array programming with NumPy, Nature, 585, 357–362, https://doi.org/10.1038/s41586-020-2649-2, 2020. 

Helin, A., Niemi, J. V., Virkkula, A., Pirjola, L., Teinilä, K., Backman, J., Aurela, M., Saarikoski, S., Rönkkö, T., Asmi, E., and Timonen, H.: Characteristics and source apportionment of black carbon in the Helsinki metropolitan area, Finland, Atmos. Environ., 190, 87–98, https://doi.org/10.1016/j.atmosenv.2018.07.022, 2018. 

Holder, A., Seay, B., Brashear, A., Yelverton, T., Blair, J., and Blair, S.: Evaluation of a multi-wavelength black carbon (BC) sensor, Clean Air Soc. Australia and New Zealand, LidcomeA, Vol. 770, ORD-028263, https://cfpub.epa.gov/si/si_public_record_report.cfm?dirEntryId=343668&Lab=NRMRL&simpleSearch=0 (last access: 20 May 2025), 2018. 

Hunter, J. D.: Matplotlib: A 2D graphics environment, Comput. Sci. Eng., 9, 90–95, https://doi.org/10.1109/MCSE.2007.55, 2007. 

Hyvärinen, A.-P., Vakkari, V., Laakso, L., Hooda, R. K., Sharma, V. P., Panwar, T. S., Beukes, J. P., van Zyl, P. G., Josipovic, M., Garland, R. M., Andreae, M. O., Pöschl, U., and Petzold, A.: Correction for a measurement artifact of the Multi-Angle Absorption Photometer (MAAP) at high black carbon mass concentration levels, Atmos. Meas. Tech., 6, 81–90, https://doi.org/10.5194/amt-6-81-2013, 2013. 

Janssen, N. A. H., Hoek, G., Simic-Lawson, M., Fischer, P., van Bree, L., Brink, H. Ten, Keuken, M., Atkinson, R. W., Ross Anderson, H., Brunekreef, B., and Cassee, F. R.: Black carbon as an additional indicator of the adverse health effects of airborne particles compared with PM10 and PM2.5, Environ. Health Persp., 119, 1691–1699, https://doi.org/10.1289/ehp.1003369, 2011. 

Järvi, L., Hannuniemi, H., Hussein, T., Junninen, H., Aalto, P., Keronen, P., Kulmala, M., Keronen, P., Hillamo, R., Mäkelä, T., Siivola, E., and Vesala, T.: The urban measurement station SMEAR III: Continuous monitoring of air pollution and surface-atmosphere interactions in Helsinki, Finland, Boreal Environ. Res., 14, 1797–2469, 2009. 

Kamboures, M. A., Hu, S., Yu, Y., Sandoval, J., Rieger, P., Huang, S. M., Zhang, S., Dzhema, I., Huo, D., Ayala, A., and Chang, M. C. O.: Black carbon emissions in gasoline vehicle exhaust: A measurement and instrument comparison, J. Air Waste Manage. Assoc., 63, 886–901, https://doi.org/10.1080/10962247.2013.787130, 2013. 

Kang, S., Zhang, Y., Qian, Y., and Wang, H.: A review of black carbon in snow and ice and its impact on the cryosphere, Earth-Sci. Rev., 210, 103346, https://doi.org/10.1016/j.earscirev.2020.103346, 2020. 

Helsinki city road statistics: Helsingin liikenteen määrät (Helsinki traffic volumes), kartta.hel.fi [data set], https://hri.fi/data/en_GB/dataset/liikennemaarat-helsingissa, last access: 1 February 2024. 

Kirchstetter, T. and Novakov, T.: Controlled generation of black carbon particles from a diffusion flame and applications in evaluating black carbon measurement methods, Atmos. Environ., 41, 1874–1888, https://doi.org/10.1016/j.atmosenv.2006.10.067, 2007. 

Korhonen, S., Loukkola, K., Portin, H., and Niemi, J. V: Ilmanlaatu pääkaupunkiseudulla vuonna 2022, HSY:n julkaisuja 1/2023, ISBN 978-952-7146-67-5, 2022. 

Krzyzanowski, M., Kuna-Dibbert, B., and Schneider, J.: Health effects of transport-related air pollution, WHO Regional Office Europe, ISBN 92-890-1373-7, ISBN 978-92-890-1373-4, 2005. 

Kuula, J., Friman, M., Helin, A., Niemi, J. V., Aurela, M., Timonen, H., and Saarikoski, S.: Utilization of scattering and absorption-based particulate matter sensors in the environment impacted by residential wood combustion, J. Aerosol Sci., 150, 105671, https://doi.org/10.1016/j.jaerosci.2020.105671, 2020. 

Lelieveld, J., Evans, J. S., Fnais, M., Giannadaki, D., and Pozzer, A.: The contribution of outdoor air pollution sources to premature mortality on a global scale, Nature, 525, 367–371, https://doi.org/10.1038/nature15371, 2015. 

Lequy, E., Siemiatycki, J., de Hoogh, K., Vienneau, D., Dupuy, J. F., Garès, V., Hertel, O., Christensen, J. H., Zhivin, S., Goldberg, M., Zins, M., and Jacquemin, B.: Contribution of long-term exposure to outdoor black carbon to the carcinogenicity of air pollution: Evidence regarding risk of cancer in the gazel cohort, Environ. Health Persp., 129, 037005, https://doi.org/10.1289/EHP8719, 2021. 

Li, B., Lei, X.-n., Xiu, G.-l., Gao, C.-y., Gao, S., and Qian, N.-s.: Personal exposure to black carbon during commuting in peak and off-peak hours in Shanghai, Sci. Total Environ., 524–525, 237–245, https://doi.org/10.1016/j.scitotenv.2015.03.088, 2015. 

Liu, F., Yon, J., Fuentes, A., Lobo, P., Smallwood, G. J., and Corbin, J. C.: Review of recent literature on the light absorption properties of black carbon: Refractive index, mass absorption cross section, and absorption function, Aerosol Sci. Tech., 54, 33–51, https://doi.org/10.1080/02786826.2019.1676878, 2020. 

Luoma, K., Niemi, J. V., Aurela, M., Fung, P. L., Helin, A., Hussein, T., Kangas, L., Kousa, A., Rönkkö, T., Timonen, H., Virkkula, A., and Petäjä, T.: Spatiotemporal variation and trends in equivalent black carbon in the Helsinki metropolitan area in Finland, Atmos. Chem. Phys., 21, 1173–1189, https://doi.org/10.5194/acp-21-1173-2021, 2021a. 

Luoma, K., Virkkula, A., Aalto, P., Lehtipalo, K., Petäjä, T., and Kulmala, M.: Effects of different correction algorithms on absorption coefficient – a comparison of three optical absorption photometers at a boreal forest site, Atmos. Meas. Tech., 14, 6419–6441, https://doi.org/10.5194/amt-14-6419-2021, 2021b. 

Mendoza, D. L., Hill, L. D., Blair, J., and Crosman, E. T.: A Long-Term Comparison between the AethLabs MA350 and Aerosol Magee Scientific AE33 Black Carbon Monitors in the Greater Salt Lake City Metropolitan Area, Sensors, 24, 965, https://doi.org/10.3390/s24030965, 2024. 

Müller, T., Henzing, J. S., de Leeuw, G., Wiedensohler, A., Alastuey, A., Angelov, H., Bizjak, M., Collaud Coen, M., Engström, J. E., Gruening, C., Hillamo, R., Hoffer, A., Imre, K., Ivanow, P., Jennings, G., Sun, J. Y., Kalivitis, N., Karlsson, H., Komppula, M., Laj, P., Li, S.-M., Lunder, C., Marinoni, A., Martins dos Santos, S., Moerman, M., Nowak, A., Ogren, J. A., Petzold, A., Pichon, J. M., Rodriquez, S., Sharma, S., Sheridan, P. J., Teinilä, K., Tuch, T., Viana, M., Virkkula, A., Weingartner, E., Wilhelm, R., and Wang, Y. Q.: Characterization and intercomparison of aerosol absorption photometers: result of two intercomparison workshops, Atmos. Meas. Tech., 4, 245–268, https://doi.org/10.5194/amt-4-245-2011, 2011. 

pandas development team: pandas-dev/pandas: Pandas, Version 1.0.3, Zenodo [code], https://doi.org/10.5281/zenodo.10957263, 2020. 

Patrón, D., Lyamani, H., Titos, G., Casquero-Vera, J. A., Cardell, C., Močnik, G., Alados-Arboledas, L., and Olmo, F. J.: Monumental heritage exposure to urban black carbon pollution, Atmos. Environ., 170, 22–32, https://doi.org/10.1016/j.atmosenv.2017.09.030, 2017. 

Petäjä, T., Ovaska, A., Fung, P. L., Poutanen, P., Yli-Ojanperä, J., Suikkola, J., Laakso, M., Mäkelä, T., Niemi, J. V., Keskinen, J., Järvinen, A., Kuula, J., Kurppa, M., Hussein, T., Tarkoma, S., Kulmala, M., Karppinen, A., Manninen, H. E., and Timonen, H.: Added Value of Vaisala AQT530 Sensors as a Part of a Sensor Network for Comprehensive Air Quality Monitoring, Front. Environ. Sci., 9, 719567, https://doi.org/10.3389/fenvs.2021.719567, 2021. 

Petzold, A. and Schönlinner, M.: Multi-angle absorption photometry – a new method for the measurement of aerosol light absorption and atmospheric black carbon, J. Aerosol. Sci., 35, 421–441, https://doi.org/10.1016/j.jaerosci.2003.09.005, 2004. 

Petzold, A., Ogren, J. A., Fiebig, M., Laj, P., Li, S.-M., Baltensperger, U., Holzer-Popp, T., Kinne, S., Pappalardo, G., Sugimoto, N., Wehrli, C., Wiedensohler, A., and Zhang, X.-Y.: Recommendations for reporting “black carbon” measurements, Atmos. Chem. Phys., 13, 8365–8379, https://doi.org/10.5194/acp-13-8365-2013, 2013. 

Pikridas, M., Bezantakos, S., Močnik, G., Keleshis, C., Brechtel, F., Stavroulas, I., Demetriades, G., Antoniou, P., Vouterakos, P., Argyrides, M., Liakakou, E., Drinovec, L., Marinou, E., Amiridis, V., Vrekoussis, M., Mihalopoulos, N., and Sciare, J.: On-flight intercomparison of three miniature aerosol absorption sensors using unmanned aerial systems (UASs), Atmos. Meas. Tech., 12, 6425–6447, https://doi.org/10.5194/amt-12-6425-2019, 2019. 

Räisänen, P., Merikanto, J., Makkonen, R., Savolahti, M., Kirkevåg, A., Sand, M., Seland, Ø., and Partanen, A.-I.: Mapping the dependence of black carbon radiative forcing on emission region and season, Atmos. Chem. Phys., 22, 11579–11602, https://doi.org/10.5194/acp-22-11579-2022, 2022. 

Ravindra, K.: Emission of black carbon from rural households kitchens and assessment of lifetime excess cancer risk in villages of North India, Environ. Int., 122, 201–212, https://doi.org/10.1016/j.envint.2018.11.008, 2019. 

Sahu, L. K., Kondo, Y., Miyazaki, Y., Pongkiatkul, P., and Kim Oanh, N. T.: Seasonal and diurnal variations of black carbon and organic carbon aerosols in Bangkok, J. Geophys. Res.-Atmos., 116, D15302, https://doi.org/10.1029/2010JD015563, 2011. 

Sand, M., Berntsen, T. K., Seland, Ø., and Kristjánsson, J. E.: Arctic surface temperature change to emissions of black carbon within Arctic or midlatitudes, J. Geophys. Res.-Atmos., 118, 7788–7798, https://doi.org/10.1002/jgrd.50613, 2013. 

Savadkoohi, M., Pandolfi, M., Reche, C., Niemi, J. V., Mooibroek, D., Titos, G., Green, D. C., Tremper, A. H., Hueglin, C., Liakakou, E., Mihalopoulos, N., Stavroulas, I., Artiñano, B., Coz, E., Alados-Arboledas, L., Beddows, D., Riffault, V., De Brito, J. F., Bastian, S., Baudic, A., Colombi, C., Costabile, F., Chazeau, B., Marchand, N., Gómez-Amo, J. L., Estellés, V., Matos, V., van der Gaag, E., Gille, G., Luoma, K., Manninen, H. E., Norman, M., Silvergren, S., Petit, J. E., Putaud, J. P., Rattigan, O. V., Timonen, H., Tuch, T., Merkel, M., Weinhold, K., Vratolis, S., Vasilescu, J., Favez, O., Harrison, R. M., Laj, P., Wiedensohler, A., Hopke, P. K., Petäjä, T., Alastuey, A., and Querol, X.: The variability of mass concentrations and source apportionment analysis of equivalent black carbon across urban Europe, Environ. Int., 178, 108081, https://doi.org/10.1016/j.envint.2023.108081, 2023. 

Schmid, O., Artaxo, P., Arnott, W. P., Chand, D., Gatti, L. V., Frank, G. P., Hoffer, A., Schnaiter, M., and Andreae, M. O.: Spectral light absorption by ambient aerosols influenced by biomass burning in the Amazon Basin. I: Comparison and field calibration of absorption measurement techniques, Atmos. Chem. Phys., 6, 3443–3462, https://doi.org/10.5194/acp-6-3443-2006, 2006. 

Segersson, D., Eneroth, K., Gidhagen, L., Johansson, C., Omstedt, G., Nylén, A. E., and Forsberg, B.: Health impact of PM10, PM2.5 and black carbon exposure due to different source sectors in Stockholm, Gothenburg and Umea, Sweden, Int. J. Environ. Res. Pu., 14, 742, https://doi.org/10.3390/ijerph14070742, 2017. 

Statistics Finland: Population, Statistics Finland [date set], https://pxdata.stat.fi/PxWeb/pxweb/en/StatFin/StatFin__synt/statfin_synt_pxt_12dy.px/, last access: 1 December 2023. 

Stocker, T. F., Qin, D., Plattner, G. K., Tignor, M. M. B., Allen, S. K., Boschung, J., Nauels, A., Xia, Y., Bex, V., and Midgley, P. M.: Climate change 2013 the physical science basis: Working Group I contribution to the fifth assessment report of the intergovernmental panel on climate change, Cambridge University Press, https://doi.org/10.1017/CBO9781107415324, 2013. 

Teinilä, K., Timonen, H., Aurela, M., Kuula, J., Rönkkö, T., Hellèn, H., Loukkola, K., Kousa, A., Niemi, J. V., and Saarikoski, S.: Characterization of particle sources and comparison of different particle metrics in an urban detached housing area, Finland, Atmos. Environ., 272, 118939, https://doi.org/10.1016/j.atmosenv.2022.118939, 2022. 

Virkkula, A., Mäkelä, T., Hillamo, R., Yli-Tuomi, T., Hirsikko, A., Hämeri, K., and Koponen, I. K.: A Simple Procedure for Correcting Loading Effects of Aethalometer Data, J. Air Waste Manage. Assoc., 57, 1214–1222, https://doi.org/10.3155/1047-3289.57.10.1214, 2007. 

Virkkula, A., Chi, X., Ding, A., Shen, Y., Nie, W., Qi, X., Zheng, L., Huang, X., Xie, Y., Wang, J., Petäjä, T., and Kulmala, M.: On the interpretation of the loading correction of the aethalometer, Atmos. Meas. Tech., 8, 4415–4427, https://doi.org/10.5194/amt-8-4415-2015, 2015. 

Virtanen, P., Gommers, R., Oliphant, T. E., Haberland, M., Reddy, T., Cournapeau, D., Burovski, E., Peterson, P., Weckesser, W., Bright, J., van der Walt, S. J., Brett, M., Wilson, J., Millman, K. J., Mayorov, N., Nelson, A. R. J., Jones, E., Kern, R., Larson, E., Carey, C. J., Polat, İ., Feng, Y., Moore, E. W., VanderPlas, J., Laxalde, D., Perktold, J., Cimrman, R., Henriksen, I., Quintero, E. A., Harris, C. R., Archibald, A. M., Ribeiro, A. H., Pedregosa, F., van Mulbregt, P., Vijaykumar, A., Bardelli, A. Pietro, Rothberg, A., Hilboll, A., Kloeckner, A., Scopatz, A., Lee, A., Rokem, A., Woods, C. N., Fulton, C., Masson, C., Häggström, C., Fitzgerald, C., Nicholson, D. A., Hagen, D. R., Pasechnik, D. V., Olivetti, E., Martin, E., Wieser, E., Silva, F., Lenders, F., Wilhelm, F., Young, G., Price, G. A., Ingold, G. L., Allen, G. E., Lee, G. R., Audren, H., Probst, I., Dietrich, J. P., Silterra, J., Webber, J. T., Slavič, J., Nothman, J., Buchner, J., Kulick, J., Schönberger, J. L., de Miranda Cardoso, J. V., Reimer, J., Harrington, J., Rodríguez, J. L. C., Nunez-Iglesias, J., Kuczynski, J., Tritz, K., Thoma, M., Newville, M., Kümmerer, M., Bolingbroke, M., Tartre, M., Pak, M., Smith, N. J., Nowaczyk, N., Shebanov, N., Pavlyk, O., Brodtkorb, P. A., Lee, P., McGibbon, R. T., Feldbauer, R., Lewis, S., Tygier, S., Sievert, S., Vigna, S., Peterson, S., More, S., Pudlik, T., Oshima, T., Pingel, T. J., Robitaille, T. P., Spura, T., Jones, T. R., Cera, T., Leslie, T., Zito, T., Krauss, T., Upadhyay, U., Halchenko, Y. O., Vázquez-Baeza, Y., and SciPy 1.0 Contributors: SciPy 1.0: fundamental algorithms for scientific computing in Python, Nat. Methods, 17, 261–272, https://doi.org/10.1038/s41592-019-0686-2, 2020.  

Waskom, M. L.: seaborn: statistical data visualization, Journal of Open Source Software, 6, 3021, https://doi.org/10.21105/joss.03021, 2021. 

Weingartner, E., Saathoff, H., Schnaiter, M., Streit, N., Bitnar, B., and Baltensperger, U.: Absorption of light by soot particles: determination of the absorption coefficient by means of aethalometers, J. Aerosol Sci., 34, 1445–1463, https://doi.org/10.1016/S0021-8502(03)00359-8, 2003. 

WHO: WHO global air quality guidelines: particulate matter (PM2.5 and PM10), ozone, nitrogen dioxide, sulfur dioxide and carbon monoxide, World Health Organization, ISBN: 9789240034228, 2021. 

Wu, L., Shen, Y., Che, F., Zhang, Y., Gao, J., and Wang, C.: Evaluating the performance and influencing factors of three portable black carbon monitors for field measurement, J. Environ. Sci. (China), 139, 320–333, https://doi.org/10.1016/j.jes.2023.05.044, 2024. 

Zaidan, M. A., Motlagh, N. H., Fung, P. L., Khalaf, A. S., Matsumi, Y., Ding, A., Tarkoma, S., Petaja, T., Kulmala, M., and Hussein, T.: Intelligent Air Pollution Sensors Calibration for Extreme Events and Drifts Monitoring, IEEE T. Ind. Inform., 19, 1366–1379, https://doi.org/10.1109/TII.2022.3151782, 2023. 

Download
Short summary
Black carbon (BC) is a pollutant from combustion that affects the climate and is harmful to health. We tested four different small BC sensors with a reference in Helsinki. The sensors compared well with the reference. As a sensor network they were able to capture differences in BC. Changes in temperature (T) and relative humidity (RH) caused error in the measurements. To reduce the effects of T and RH on BC sensors, more robust boxes should be developed, or corrections should be applied.
Share
Altmetrics
Final-revised paper
Preprint
